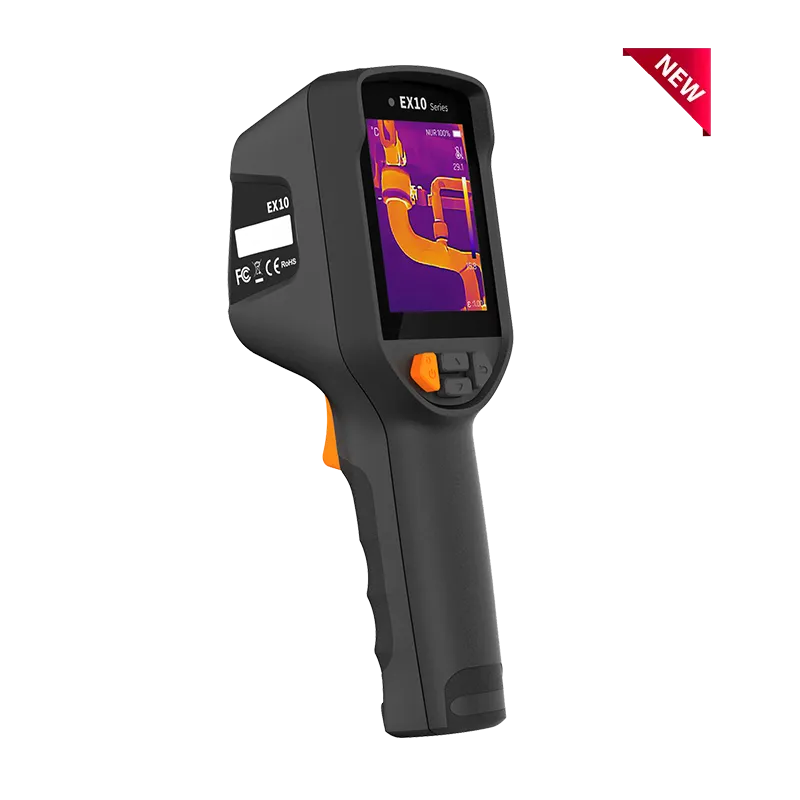

EX10 Handheld Thermal Camera

EX10 Handheld Thermal Camera

Provided with an infrared detector with a 160×120 resolution, EX10 Series employs real-time AI super-resolution to enhance its resolution to 320 ×240. Featuring a 2.8-inch display, video recording, UVC+WiFi screen projection and optional laser pointer, the device can be widely used in household maintenance, electrical maintenance, HVAC leak detection, automotive repairs and other fields.

Inquire Now

Feature

icon

High-Resolution Thermal Imaging, Powered by Real-Time AI Super-Resolution

  • 160×120 infrared resolution, enhanced to 320 × 240 with real-time AI super-resolution
  • NETD as low as 40mK, capable of distinguishing subtle temperature differences of 0.04°C
  • 8-inch display, presenting thermal images in detail
icon

Conduct smart surveys with efficient and accurate target localization

  • Laser pointer function for quickly locating abnormal points
  • Wide measurement range from -20℃ to 550℃, automatic range switching
  • Support video recording for post-analysis and documentation
  • Support UVC + Wi-Fi screen projection, compatible with PC and app software for further analysis
icon

With professional-grade durability and offers unwavering reliability

  • Feature a quick start-up function and offers up to 10 hours of continuous operation
  • 8GB of built-in memory, supporting large amounts of data storage
  • Rated IP54 for protection against dust and water, and built to withstand drops from up to 2 meters
Download
icon

With professional-grade durability and offers unwavering reliability

  • Feature a quick start-up function and offers up to 10 hours of continuous operation
  • 8GB of built-in memory, supporting large amounts of data storage
  • Rated IP54 for protection against dust and water, and built to withstand drops from up to 2 meters
icon

Software+ : Complete Software PC Client and App

  • Equipped with a professional mobile/PC temperature analysis platform, supporting secondary analysis

Specification

Thermal Imaging
Infrared Resolution

160×120

Super Resolution

320×240

Spectral Band

8-14μm

NETD

40mK

Frame Rate

25 Hz

Lens Focal Length

2.6mm

FOV

40°×30°

IFOV

4.62 mrad

Focusing Mode

Fixed focus

Minimum Imaging Distance

11cm

Measurement Range

-20~150℃; 100~550℃; auto switching

Imaging Display
Display

2.8-inch; 240×320 resolution

Palettes

6 options

Image Mode

Infrared

Temperature Width Stretch

Automatic/Manual

Image Storage
Storage Medium

8GB Internal Memory

Image File Format

JPEG

Video Recording and Transmission
Communication Interface

USB2.0

Video Recording

Standard MP4 video recording

Video Resolution

240×320

Video Transmission

UVC (with temperature data)

Measurement and Analysis
Measurement Accuracy

±2°C or ±2% of readings (whichever is greater)

Measurement Unit

Celsius degree, Fahrenheit degree, Kelvin

Temperature Alarm

Supports (high and low temperature alarms)

Automatic lmage Capture Upon Alarm

Supports (with temperature data)

Color Alarm (lsotherm)

Above / Below / Between — The image within the isotherm range is displayed in pseudo color, while other areas are shown in white-hot mode

Analysis Functions on the Device

Central point / Highest temperature point / Lowest temperature point / 3 custom points

Analysis Report

PDF forma(requiring support from PC analysis software)

Supporting Software

PC (Infrared Analysis Software)

System Functions
Connection Mode

USB2.0 Type-C

Laser Pointer

Not support

Quick Start

support

WiFi

Not support

Others
Battery

2750mAh lithium-ion battery

Charging Time

Above 90% within 75 minutes

Charging Mode

USB2.0; Type-C cable charging; Not support fast charging

Battery Life

≥10 hours

Tripod Socket

Support

Operating Temperature

-20°C~ 50°C

Storage Temperature

-40°C~ 70°C

Extemal Interface

Type-C USB2.0 Tripod socket

Ingress Protection Rating

IP54

Shock and Vibration

shock: 25G (IEC60068-2-27); vibration: 2.5G (IEC60068-2-6); 2-meter drop

Weight and Dimensions

257g±10g (including battery), 206.9×67×81.5mm

Packing List

Infrared thermal camera; user manual; USB cable; certificate of qualification; calibration certificate; wrist strap

Application Scenarios

Household-Maintenance
Household Maintenance

Automotive-Maintenance
Automotive Maintenance

HVAC-Leak-Detection
HVAC Leak Detection

Equipment-Maintenance
Equipment Maintenance
