| Thermal Imaging |
|---|
| Detector Type | 12μm uncooled infrared detector |
|---|
| Infrared Resolution | 256×192 |
|---|
| Spectral Band | 7.5-14μm |
|---|
| NETD | ＜40mK (25°C,F1.0) |
|---|
| Frame Rate | 25 Hz |
|---|
| Lens Focal Length | 3.2mm |
|---|
| FOV | 56°×42° |
|---|
| IFOV | 3.75mrad |
|---|
| Focusing Mode | Fixed focus |
|---|
| Minimum Imaging Distance | 0.3m |
|---|
| Measurement Range | -20°C ~ +150°C, 100°C ~ +400°C |
|---|
| Measurement Accuracy | ±2ºC or ±2% of readings, whichever is greater |
|---|
|
| Imaging Display |
|---|
| Palettes | 7 options |
|---|
| Image Mode | Infrared |
|---|
| Temperature Width Stretch | Auto |
|---|
|
| Measurement and Analysis |
|---|
| App Analysis Function | Central temperature point/Highest temperature point/Lowest temperature point, 1 preset analysis template (support 3 custom points, 3 custom lines, and 3 custom frames) |
|---|
|
| System Functions |
|---|
| Communication Protocol | Wi-Fi, USB, Bluetooth |
|---|
| Remote Access and Control | WiFi, Type-C |
|---|
|
| Others |
|---|
| OTA | Support OTA upgrade |
|---|
| Battery | 1050mAh |
|---|
| Charging Mode | USB Type-C |
|---|
| Battery Life | About 2h |
|---|

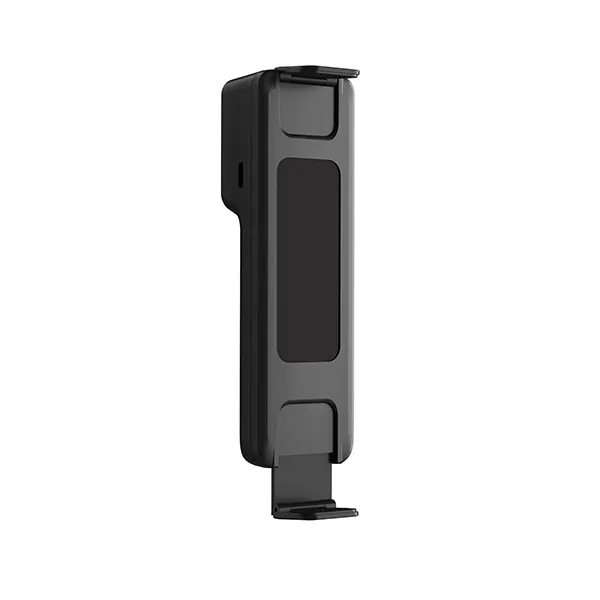

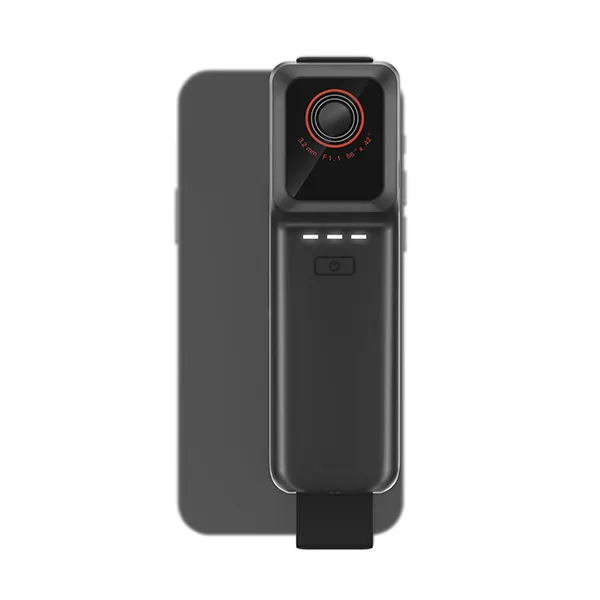

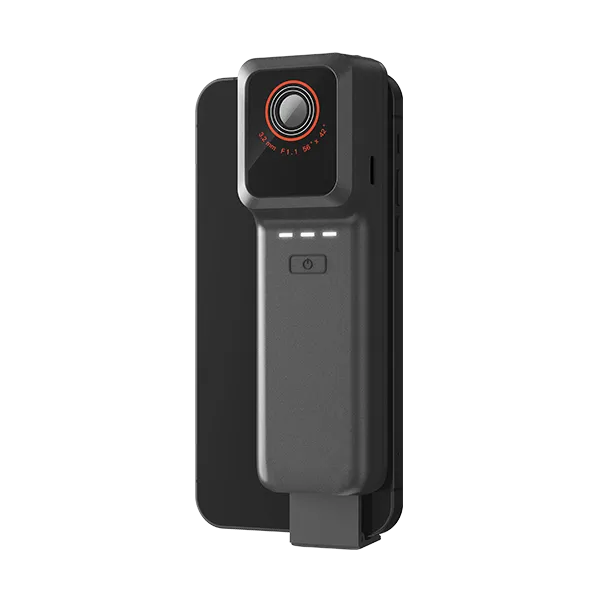

| Clamp Width | Minimum 131mm/Maximum 172mm |
|---|
| Tripod Socket | UNC 1/4-20 interface for tripod |
|---|
| Operating Temperature | -10°C~+50°C |
|---|
| Operating Humidity | 10%~90% (non-condensing) |
|---|
| Storage Temperature | -20°C~+60°C |
|---|
| Ingress Protection Rating | IP54 |
|---|
| Shock and Vibration | 2G(EC60068-2-6)、25G(EC60068-2-29) |
|---|
| Weight and Dimensions | 130g |
|---|
| Authentication | CE/RoHS/DGM/WEEE/Measure |
|---|
| Packing List | Data cable×1, complete machine×1, quick start guide×1, packing list×1, quality certifcate×1 |
|---|
|
