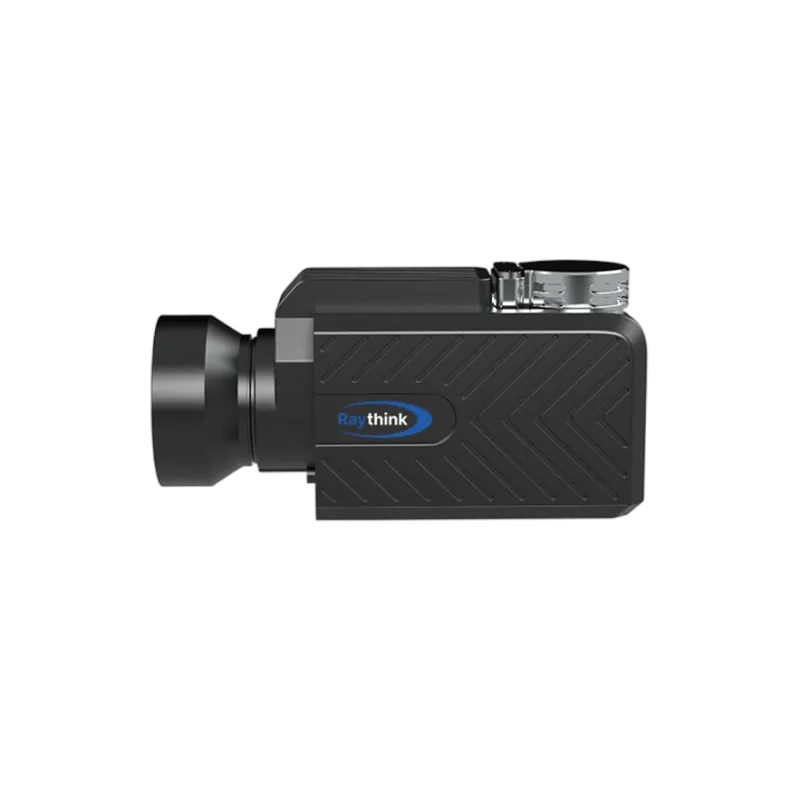

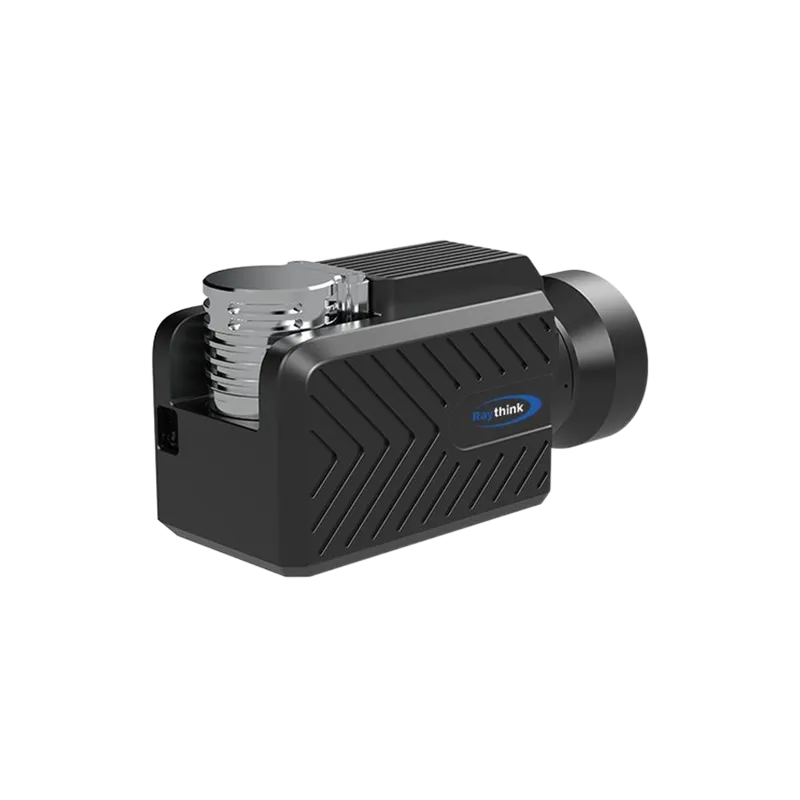

Photon C330B Cooled VOCs Gas Detection Thermal Camera

Photon C330B Cooled VOCs Gas Detection Camera

Photon C330B Cooled VOCs Gas Detection Thermal Camera

Name: Cooled VOCs Gas Detection Thermal Camera - Raythink
SKU: Photon C330B

Photon C330B cooled VOCs Gas Detection thermal camera is exclusively designed to detect leakage of organic compounds (VOCs) around the wavelength of 3.3μm. It features low NETD and a high response rate, converting invisible gases into visible infrared images. It is widely used in fields such as the petrochemical industry, natural gas transportation, and environmental monitoring. The product series supports multiple video output interfaces, providing complete solutions for secondary development of products such as handheld products, UAVs, robots and PTZ.

Add to Compare

Inquire Now

Feature

High sensitivity and excellent gas visualization capability

New self-developed gas detection algorithms and NETD as low as 10mK to satisfy observation requirements of remote or micro leakage.

Rich products to satisfy application requirements in various scenarios

Equipped with multiple detectors and lenses to satisfy application requirements in different scenarios.

Multiple output interfaces for convenient and efficient secondary development

Support multiple output interfaces such as PAL, Camera Link, RS422, RS422 servo interface, and RJ45 100M Ethernet port to facilitate secondary development.

Specification

Performance Indicators

Detector Type	Cooled Infrared Detector
Resolution	320×256
Frame Rate	25 Hz
F#	1.2
Pixel Pitch	30μm
Spectral Band	3.2±0.2~3.4±0.2μm
NETD	≤10mK@25°C
Cooling Time@25°C	≤5min

Image Adjustment

Palette	Support (8 palettes)
Digital Zoom	1.0~4.0× continuous zoom (step size: 0.1)
Image Processing	Non-uniformity correction/Pixel defect correction/Digital filtering noise reduction/ Digital detail enhancement/Self-adaptive contrast adjustment
Mirroring	Horizontal/Vertical/Diagonal
