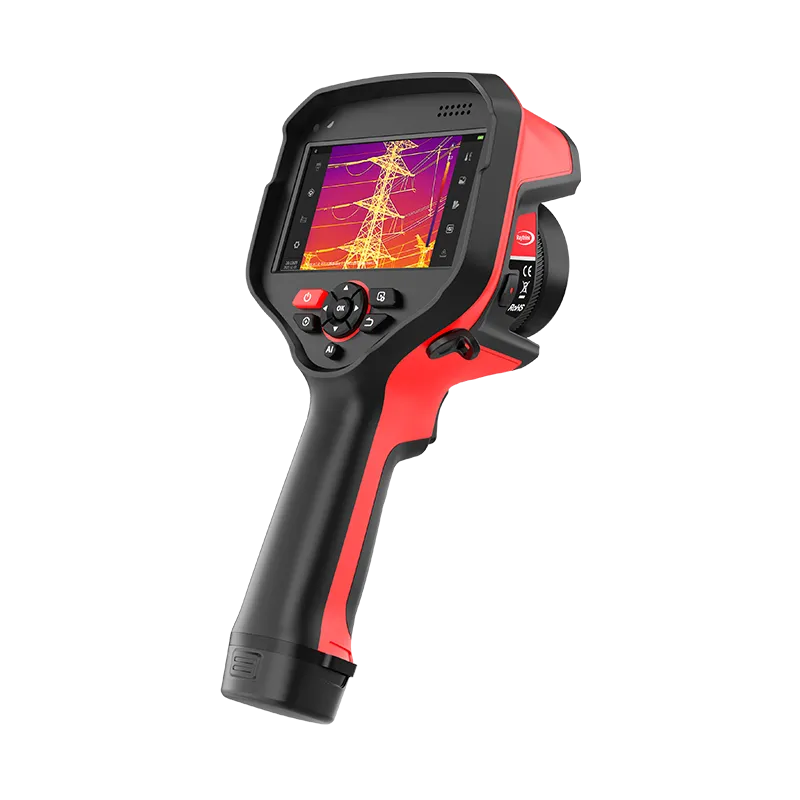

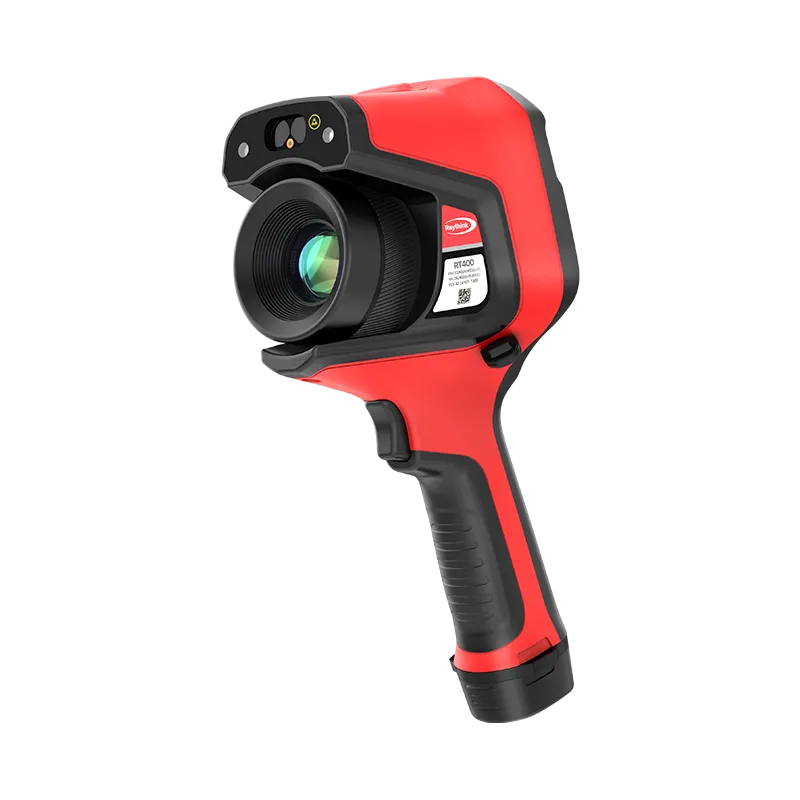

RT400 Expert Thermal Camera

Equipped with a new-generation detector with a NETD as low as 35mK, the new RT400 can capture more subtle hotspots, and display sharper and cleaner thermal images.
The device has rich and powerful features such as Android OS, trend analysis, and area measurement.
It is a new strong tool for expert-level full-scene analysis.

Equipped with a 12μm uncooled infrared detector, with a resolution of 480×360, supporting super resolution.
NETD is as low as 35mK, and temperature measurement precision is ±2°C or ±2% of reading (whichever is the maximum value).

Standard 25° lens, with optional wide-angle, telephoto, and super telephoto lenses.

Android operating system, more convenient to operate
Support intelligent image stabilization, making temperature measurement images more stable
Support laser rangefinding and area measurement.
Support up to 15 points/lines/areas to analyze more temperature details in the screen.

Thermal Imaging

Detector Type	Uncooled infrared detector
Infrared Resolution	480×360
Pixel Size	12μm
Super Resolution	960×720
Spectral Band	7.5-14μm
NETD	＜35mK (25°C,F1.0)
Frame Rate	25 Hz
Lens Focal Length	Standard lens: 17.7mm; super telephoto lens: 60.9mm; telephoto lens: 31.5mm; wide-angle lens: 9.5mm.
FOV	Standard lens: 25°×20°; super telephoto lens: 7°×5.6°; telephoto lens: 14°×11.2°; wide-angle lens: 45°×36°.
IFOV	Standard lens: 0.92mrad; super telephoto lens: 0.27mrad; telephoto lens: 0.52mrad; wide-angle lens: 1.71mrad.
Focusing Mode	Manual focus, one-button center focus, automatic center focus, single-touch automatic focus, laser-assisted focus, electric micro focus.
Measurement Range	-20°C~+150°C, 100°C~650°C; optional: 400°C~+1500°C
Measurement Accuracy	±2°C or ±2% of readings, whichever is greater

Imaging Display

Display	5-inch OLED touch screen, resolution 1280×720
Visible Light Camera	13 megapixels
Digital Zoom	1× ~ 10×
Palettes	19 options
Image Mode	Infrared, visible light, PIP, dual-spectrum fusion
Temperature Width Stretch	Support

Image Storage

Storage Medium	Standard 64GB Micro SD, Support SD, SDHC, SDXC,up to 2TB
Text Notes	Support
Voice Annotation	Support

Measurement and Analysis

Analysis Functions on the Device	Support up to 15 movable points, lines, frames, circles and polygons, and up to 5 preset modes
Laser Rangefinding	Support
Area Measurement	Support
Position	Support
Temperature Difference Analysis	Support
Trend Analysis	Supports temperature trend recording and analysis.
Image Freezing	Support
Analysis Report	PDF format. Support editing and template importing on the PC client.
Supporting Software	PC (Infrared Analysis Software) & Mobile Device (iOS/Android APP)

Video Functions

Radiation Infrared Video Recording	Support compressed full radiation video recording (.irv), up to 25Hz video recording.
Non-radiation Infrared or Visible Light Video Recording	Standard MP4 video recording
Radiation Infrared Video Stream Transmission	Analysis at about 25Hz on PC
Non-radiation Infrared Video Stream Transmission	RTSP H.264
Video Resolution	1280×720

System Functions

Intelligent Image Stabilization	Support
Intelligent Panoramic Stitching	Support panoramic stitching on the PC client, and one-click synthesis.
Intelligent Routine Inspection	Support. General task package import and editing, standard and automatic naming of images
Routine Inspection Record Self-inspection	Support
Dual-Spectrum Video Recording	Simultaneous infrared video and visible light video recording, in MP4 format.
Communication Protocol	Wi-Fi, Bluetooth, USB, DP, Type-C to HDMI
Voice Control	Voice assistant, quick command recognition
Flashlight	Support

Others

Microphone/Speaker	Support
Battery Life	Continuous operating time ≥ 6 hours (depending on the actual environment and service conditions)
Interface	USB3.0 Type-C, SD card, SIM card, Mini HDMI
Tripod Socket	UNC 1/4-20 interface for tripod
Operating Temperature	-20°C~+55°C
Operating Humidity	10%~95% (non-condensing)
Storage Temperature	-40°C~+70°C
Ingress Protection Rating	IP54
Shock and Vibration	Shock: 25g (IEC 60068-2-27); vibration: 2.5g (IEC60068-2-6)
Weight and Dimensions	About 1.3kg (with battery), 144×129×307mm (subject to actual situations)
Authentication	CE/RoHS/CMA, etc.
Packing List	Thermal camera, standard lens, lithium-ion battery×2, charging stand, charger (with plug for use in multiple countries), charging cable, Bluetooth headset, SD card 64G, Type-C cable, lens hood, mold drawing, data download card, calibration certificate, certificate of qualification, hand strap (with buckle), safety box, lens cap (with screws).
