Turing A640 Uncooled Thermal Temperature Measurement Module, Uncooled Thermal Module

Turing A640 Uncooled Infrared Module (Temperature Measurement)

Name: Long Wave Infrared Module, Uncooled IR Camera Module - Raythink
SKU: Turing A640-1

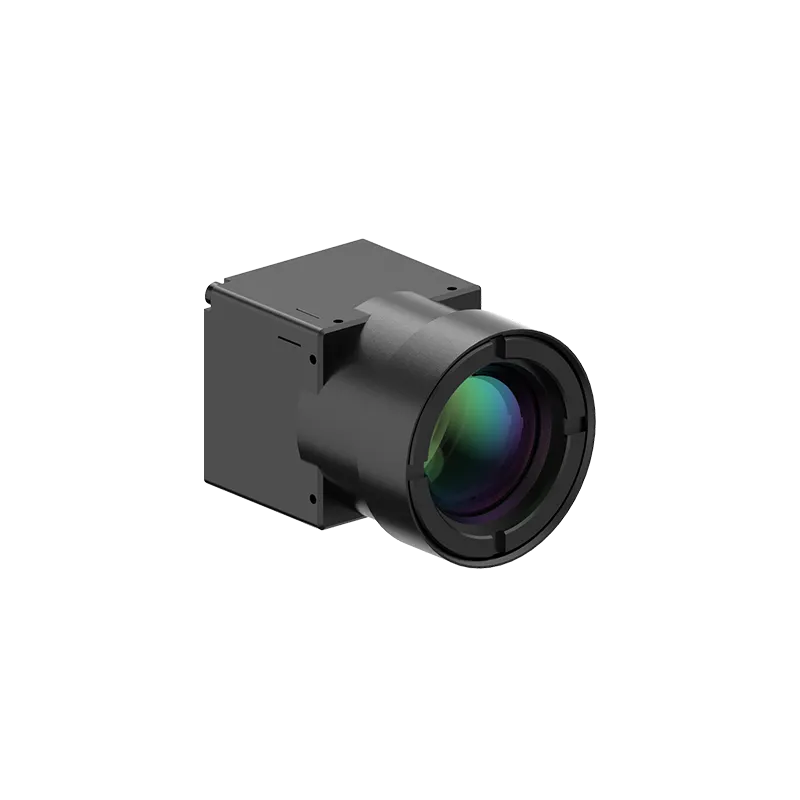

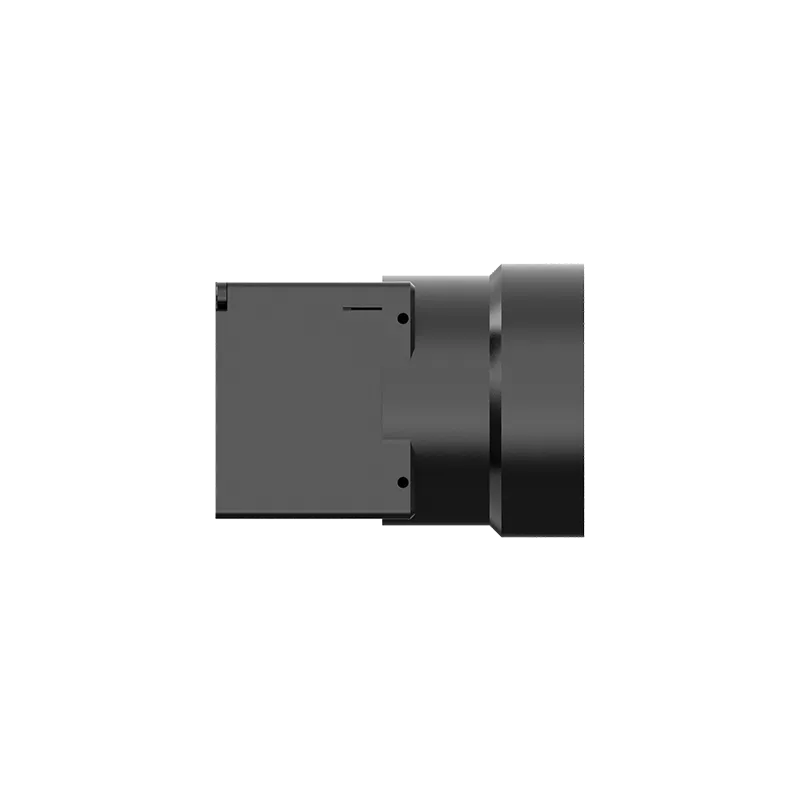

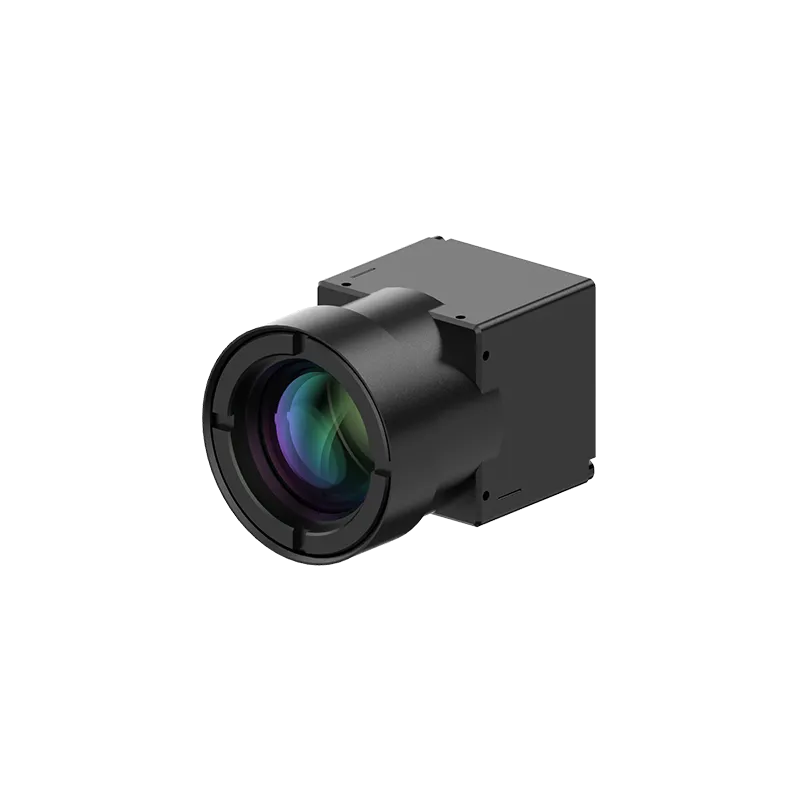

Turing A640 uncooled infrared module is equipped with a 640×512 ceramic-packaged infrared detector. It can not only provide clear images and accurate temperature data but also be equipped with multiple serialized lenses and various kinds of user extension components for customers to select. It can be applied in many fields such as industrial and electrical temperature measurement, security, and machine vision.

Add to Compare

Inquire Now

Feature

Multiple Selections

Provide 10+ a thermalized lenses applicable to different distance apps.

Excellent Temperature Measurement Characteristics

Measurement range of -20°C~+550°C; Provide precise and rapid temperature assessment capability.

Flexible Extension

Flexible USB, MIPI, DVP, LVDS, Camera Link and analog video output interfaces,Provide SDK to support secondary development.

Specification

Performance Indicators

Detector Type	Uncooled VOx infrared detector
Resolution	640×512
Frame Rate	25 Hz
Pixel Pitch	12μm
Spectral Band	8~14μm
NETD	≤50mK at 25°C (≤40mK, optional)

Image Adjustment

Brightness/Contrast Adjustment	Manual/Automatic/Linear
Polarity	Black-hot/White-hot
Palette	Support
Reticle	Display/Blank/Move
Digital Zoom	1.0~4.0× continuous zoom (step size: 0.1)
Image Processing	Tecless Scenario-based nonuniformity correction, digital filtering noise reduction, and digital detail enhancement
Mirroring	Horizontal/Vertical/Diagonal

Power Supply

Power Supply Range (typical)	3.5~18V DC supported by user extension components, 4~5.5V DC
Typical Power Consumption at 25°C Without Extension	＜0.7W
Power Protection	Overvoltage, undervoltage, and reverse connection supported by user extension components

Interface

Digital Video	BT.656/BT.1120/14Bit or 8Bit LVCMOS/LVDS
Analog Video	1-channel PAL system
Serial Communication Interface	UART (3.3V)/RS232
Extension Components	MIPI/USB/Camera Link/Analog video/BT.656/LVDS

Temperature Measurement Performance

Measurement Range	For measurement series,-20°C +150°C,+100°C~+550°C
Measurement Accuracy	For measurement series, ±3°C or ±3% of reading (The greater shall prevail) at Ambient temperature of -20°C~+60°C±2°C (optional)
Measurement Tool	Secondary analysis of points, lines, and areas

Physical Characteristics

Dimensions (Without lens and extension components)	26mm×26mm×19.2mm
Weight (3.2mm, without extension components)	20g±3g

Environment Adaptability

Operating Temperature	-20℃～60℃
Storage Temperature	-45℃～+85℃
Humidity	5 ~ 95%, non-condensing
Vibration	6.06g, random vibration, all axes
Impact	80g, 4ms, ﬁnal peak sawtooth wave, three axes and six directions
