Turing L256 Uncooled Thermal Imaging Module, Uncooled Thermal Module

Turing L256 Uncooled Infrared Module (Imaging)

Name: Turing L256 Uncooled Thermal Imaging, Infrared Module - Raythink
SKU: Turing L256

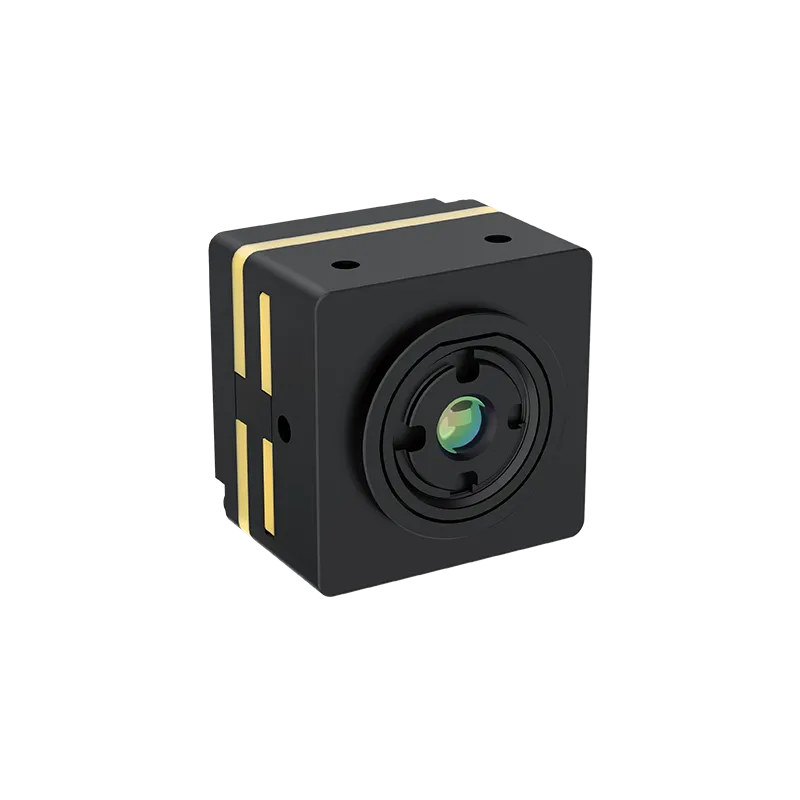

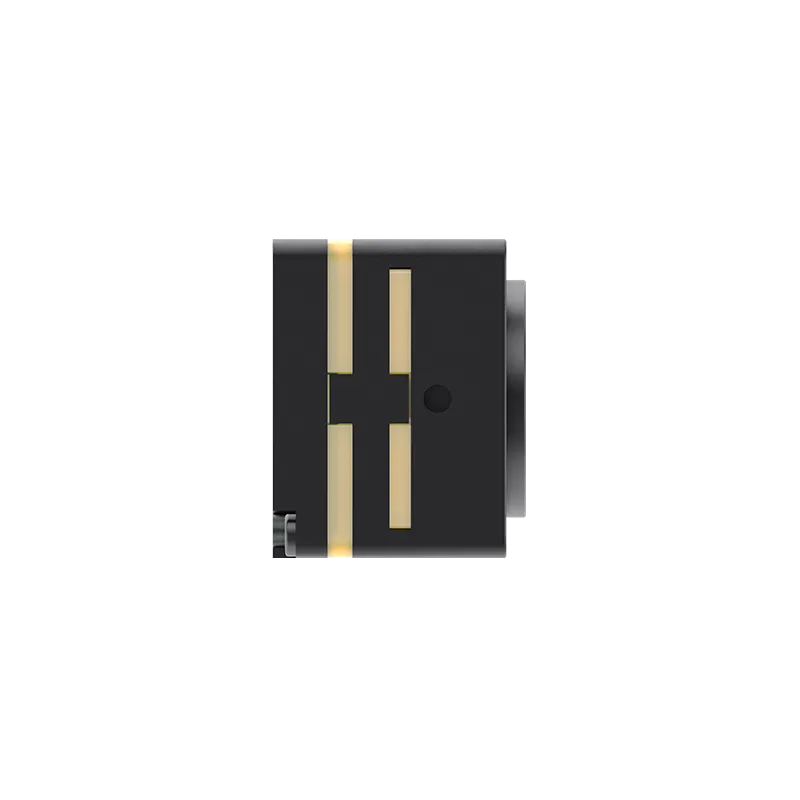

Turing L256 uncooled infrared module is equipped with an advanced 256×192 wafer detector with a dimension of 18×18mm. Thanks to its integrated design, it redefines standards in weight, dimension and power consumption (SWaP³) in the OEM module industry, providing excellent miniaturized solutions for consumer products.

Add to Compare

Inquire Now

Feature

Compatibility Design

- Its resolution is 256×192 and dimension is 18mm×18mm, which are consistent with those of the L384 mechanical interface for compatibility design.

Excellent Performance

50Hz imaging to provide a smooth image experience.

Multiple Selections

The FOV is 20°~90° and the extension supports multiple interfaces such as DVP/USB/Analog video.

Specification

Performance Indicators

Detector Type	Uncooled VOx infrared detector
Resolution	256×192
Frame Rate	50 Hz
Pixel Pitch	12μm
Spectral Band	8~14μm
NETD	≤50mK@25°C

Image Adjustment

Brightness/Contrast Adjustment	Manual/Auto
Polarity	Black-hot/White-hot
Palette	It supports multiple types
Reticle	Display/Blank/Move
Image Processing	Digital filtering noise reduction/Digital detail enhancement
Mirroring	Horizontal/Vertical/Diagonal

Power Supply

Power Supply Range (typical)	3.8~5.2V DC/1.8V/3.3V
Typical Power Consumption at 25°C Without Extension	≤0.35W

Interface

Digital Video	LVCMOS/BT.1120
Serial Communication Interface	UART
Extension Components	USB 2.0 / Analog video

Physical Characteristics

Dimensions (Without lens and extension components)	18×18mm
Weight (3.2mm, without extension components)	About 8.7g
Lens Model	2mm, 3.2mm, 7mm, 10mm, and 13mm

Environment Adaptability
