Turing L256 Uncooled Infrared Module (Temperature Measurement)

Name: Turing L256 Uncooled Infrared Module, Uncooled Thermal Imaging - Raythink
SKU: Turing L256-1

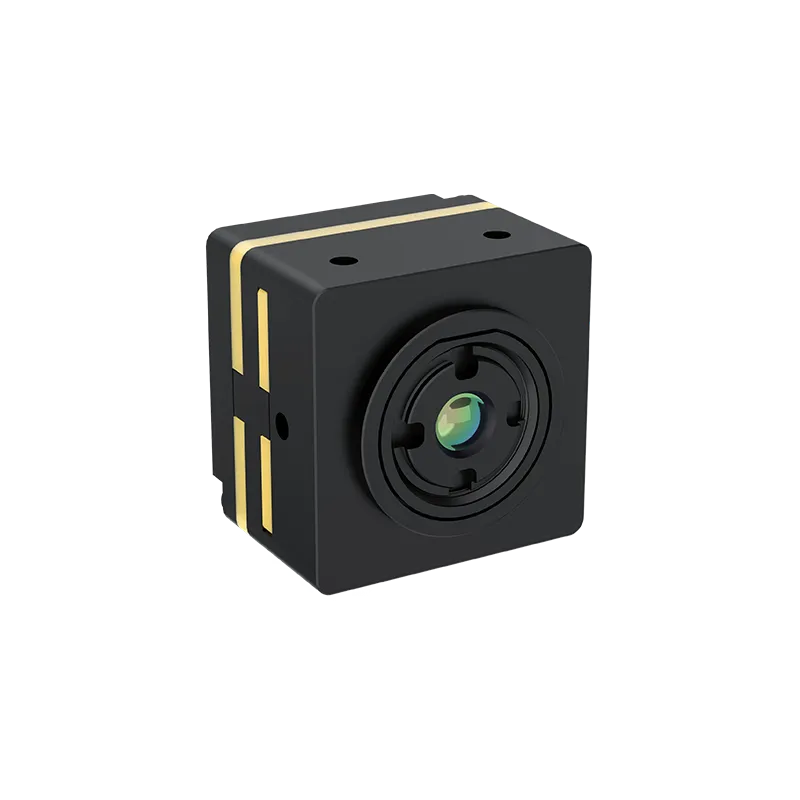

Turing L256 uncooled infrared module is equipped with an advanced 256×192 wafer detector with a dimension of 18×18mm. Thanks to its integrated design, it redefines standards in weight, dimension and power consumption (SWaP³) in the OEM module industry. As the best choice for low-cost solutions, it can be used in many fields such as industry, power, security, and machine vision.

Add to Compare

Inquire Now

Feature

Compatibility Design

Its resolution is 256×192 and dimension is 18mm×18mm, which are consistent with those of the L384 mechanical interface for compatibility design.

Excellent Performance

-20°C~+550°C wide measurement range to satisfy application requirements in different scenarios.

Multiple Selections

The FOV is 20°~90° and the extension supports DVP/USB.

Specification

Performance Indicators

Detector Type	Uncooled VOx infrared detector
Resolution	256×192
Frame Rate	25 Hz
Pixel Pitch	12μm
Spectral Band	8~14μm
NETD	≤50mK@25°C

Image Adjustment

Brightness/Contrast Adjustment	Manual/Auto
Polarity	Black-hot/White-hot
Palette	It supports multiple types
Reticle	Display/Blank/Move
Image Processing	Digital filtering noise reduction/Digital detail enhancement
Mirroring	Horizontal/Vertical/Diagonal

Power Supply

Power Supply Range (typical)	3.8~5.2V DC/1.8V/3.3V
Typical Power Consumption at 25°C Without Extension	≤0.3W

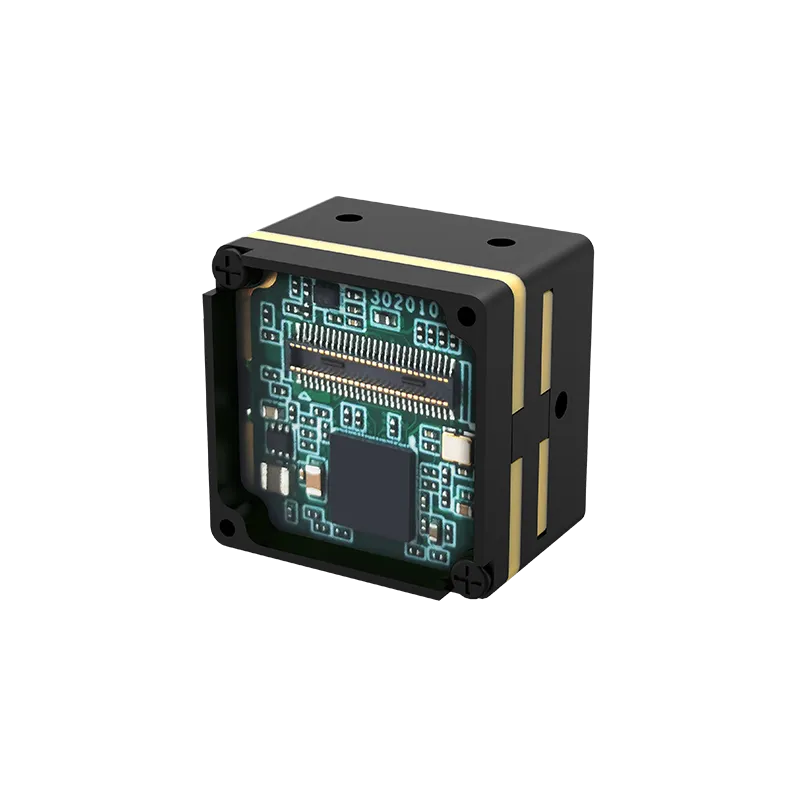

Interface

Digital Video	CDS3
Serial Communication Interface	UART
Extension Components	USB2.0

Temperature Measurement Performance

Measurement Range	Temperature measurement series: -20℃～+550℃
Measurement Accuracy	For measurement series, ±3°C or ±3% of reading (The greater shall prevail) @Ambient temperature of -20°C~+60°C

Physical Characteristics

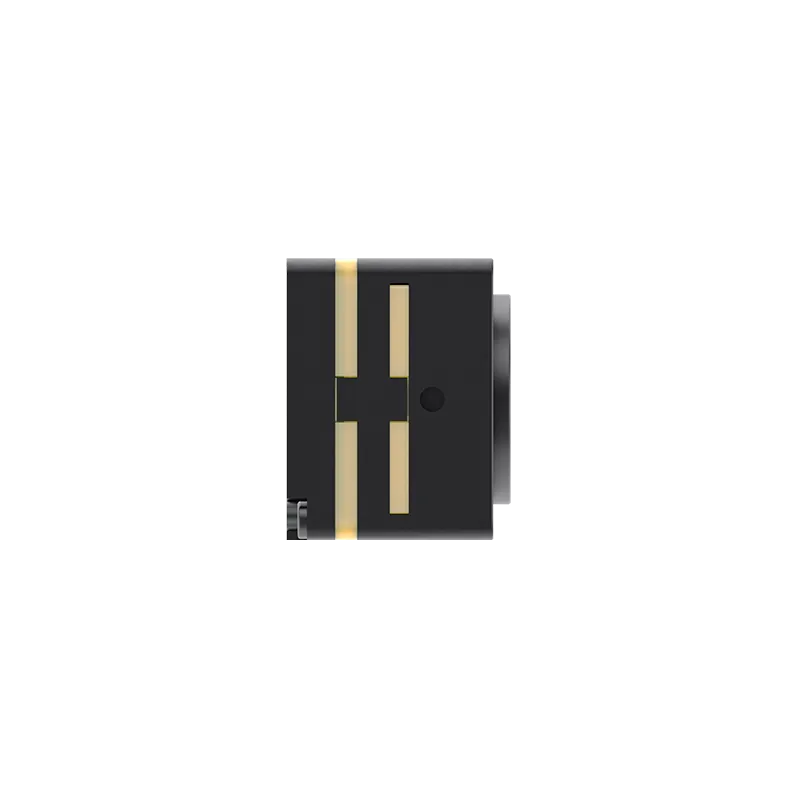

Dimensions (Without lens and extension components)	18×18mm
Weight (3.2mm, without extension components)	About 8.7g
Lens Model	2mm, 3.2mm, 7mm, 10mm, and 13mm
