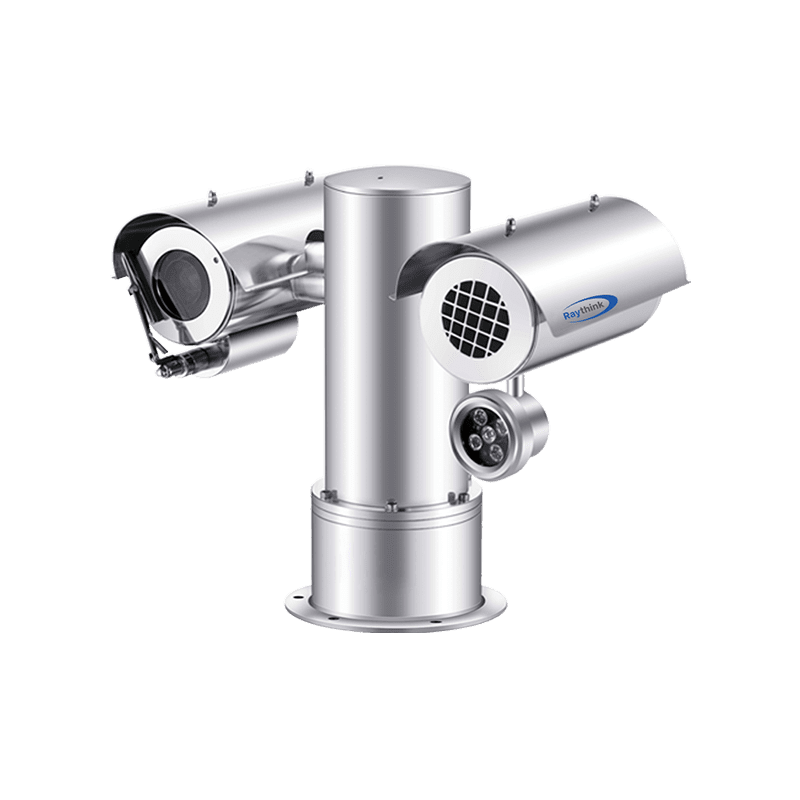

TE464T1 Dual-Spectrum Explosion-Proof PTZ Camera

TE464T1 dual-spectrum explosion-proof PTZ camera equipped with an HD visible light camera and a 640×512 thermal imaging camera.
TE464T1 can rotate 360° to view all suroundings. 304 or 316 stainless steel is using for housing to let the camera operate in hazardous area.

Adopting the latest 12um uncooled infrared detectors, integrated with advanced infrared imaging algorithms for better image quality.

All-weather, 24/7 security monitoring with dual thermal&visible light imaging.

Certified with dual explosion-proof ratings for dust and gas: Exd ⅡC T6 Gb/Ex tD A21 IP68 T80°C.

Measurement range from -20℃ to 550℃, accuracy ±2℃ or 2%.

Features an integrated intelligent fire detection algorithm for efficient and accurate monitoring.

Support tripwire/intrusion detection, as well as intelligent detection of fire point.

Thermal Module

Optical Module

PTZ

Pan	360° continuous rotation
Tilt	-90°~+90°

Temperature Measurement

Measurement Range	-20℃~+550℃
Measurement Accuracy	±2℃ or ±2%
Measurement Rules	Suport 4 temperature measurement rules(fullframe, point, line, area)

Smart Function

Fire Detection	Support
VCA	Line Crossing&Intrusion detection
Linkage Action	Video/ Snapshot/Email/Alarm output/sound and light alarm

System Interface

Power	85V~260V AC/24V DC 3A (optional)
Network	1xRJ45 10M/100M self-adaptive interface
Alarm	1 in/1 out
RS485 Interface	1 x RS485

General
