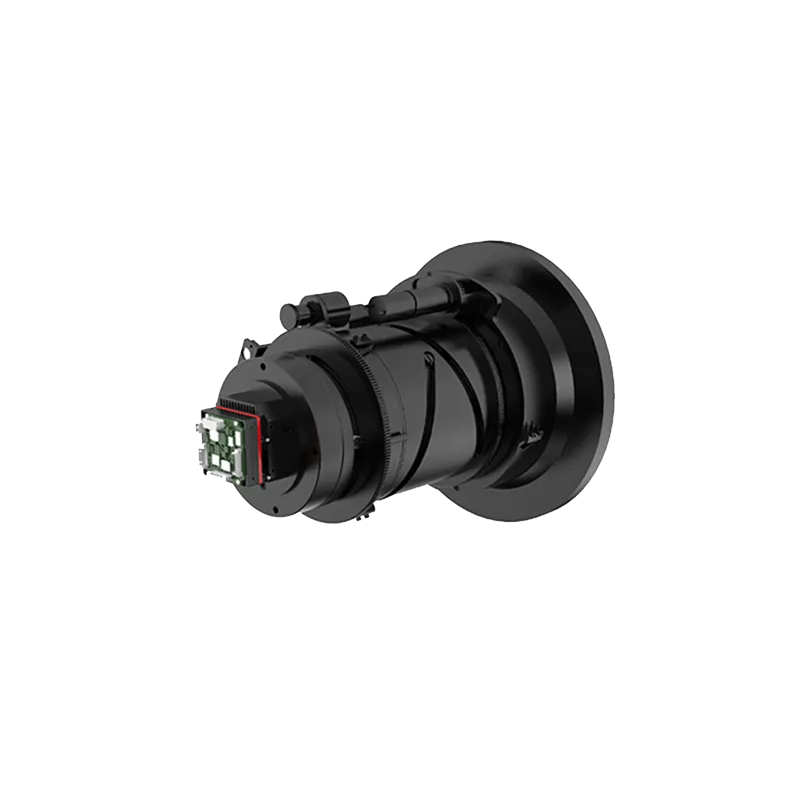

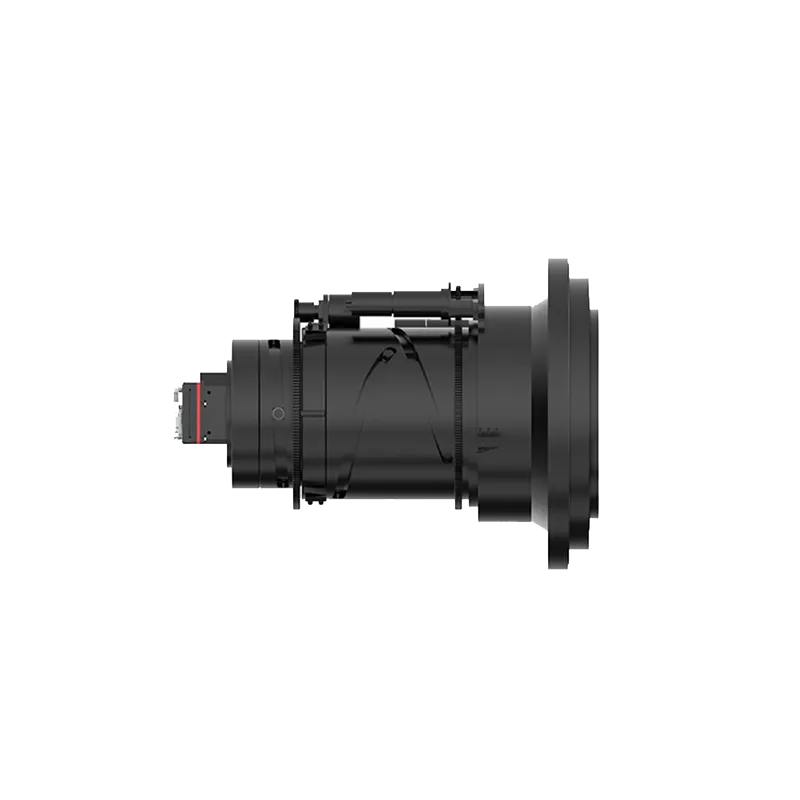

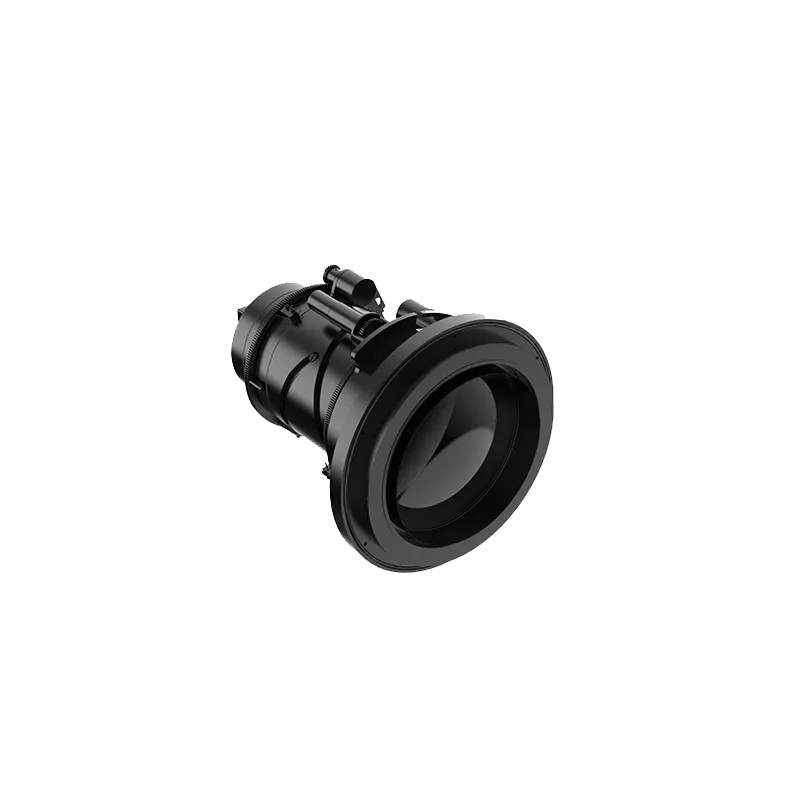

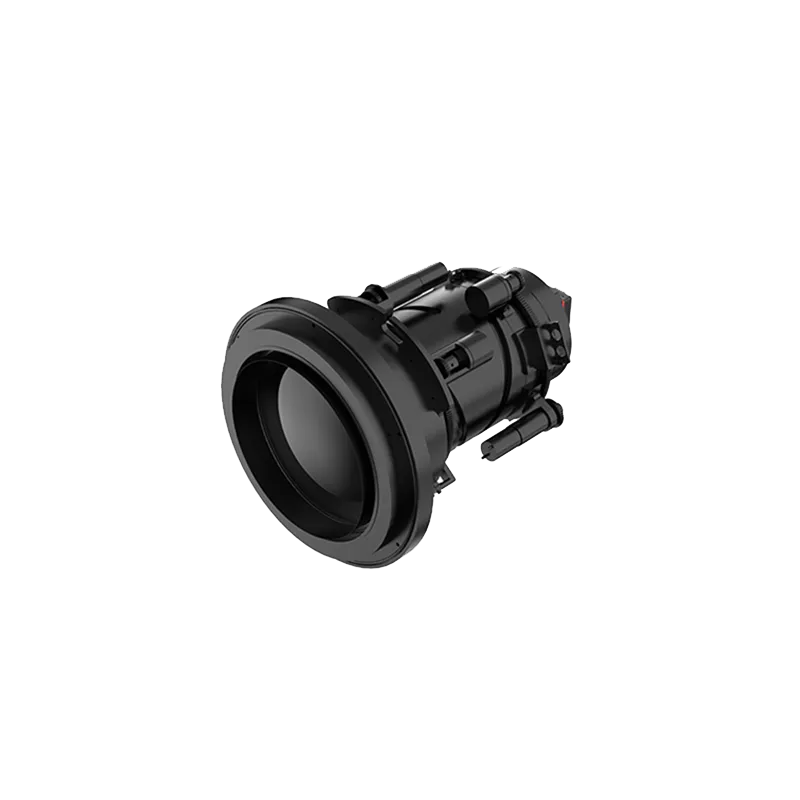

Turing F384 Uncooled Infrared Module (Imaging)

The Turing F384 uncooled infrared module has a built-in high-sensitivity VOx infrared detector, providing a consistently high-performance kernel, ultimate image algorithms, and technology of lens control, bringing a new experience for long-distance monitoring. The product can be widely used in application scenarios such as perimeter security, high-altitude observation, forest fire prevention, and water area monitoring.

Feature

All-Weather, All-Scenario Ultra-Fast Focusing

  1. By optimizing the lens control technology and employing a series of continuous zoom lenses, this product achieves full focus in all temperature ranges
  2. Deeply optimized automatic focusing algorithm to achieve ultra-fast focusing in 1 second in general and weak target scenarios
  3. The image is clear throughout the process in application scenarios like target tracking and linkage magnification

Providing Sharp Infrared Images

  1. The module upgrades the image algorithm to the new generation and optimizes the image for special scenarios such as forests, sea, sky, and rainy and foggy weather, providing customers with clear and sharp infrared images.

Providing Optimized Lens

  1. It supports athermalized prime lenses, prime electric focusing lenses, and continuous zoom lenses.
  2. It can realize electric focus, continuous zoom, automatic focus, and defocusing compensation functions, etc.

Multiple Interfaces, Easy for Secondary Development

  1. It provides interfaces, BT.601, BT.1120, and other video output interfaces.
  2. Expandable SDI, USB, Cameralink, and HDMI interfaces
  3. It provides multiple SDK, which are simple and easy to use, shortening the development cycle, improving efficiency, and reducing secondary development costs.

Specification

Electrical Characteristics
Power Consumption

<1.5w (Typical, at25°C)

Performance Indicators
Detector Type

Uncooled VOx infrared detector

Resolution

384×288

Detector Frame Rate

50 Hz

Pixel Pitch

12μm

Spectral Band

8~14μm

NETD

≤40mK at 25℃, F#1.0

Image Adjustment
Palette

Support (20 types)

Digital Zoom

1.0~8.0× continuous zoom (step size: 0.1)

Image Processing

Non-uniformity correction/Brightness and contrast adjustment/Temporal filtering/Spatial filtering noise reduction/Digital detail enhancement/Style adjustment

Mirroring

Horizontal/Vertical/Diagonal

Network Function
Network Protocol

TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, IGMP, SMTP, NTP, QoS and other network protocols.

Platform Access

Modbus TCP, MQTT protocols, ONVIF, GB28181, and SDK.

Simultaneous Previewed Videos

Up to 8 channels

User Management

Up to 20 users, 3 levels: administrator, operator and user

Browser

Google, Firefox, Edge, etc.

Intelligent Functions
Intelligent Video

Support

Intelligent Alarm

Support abnormality detection and linkage alarm for network cable disconnection, IP address conflict, memory error, and illegal access

Intelligent Detection

Supports intelligent analysis of events such as regional intrusion, tripwire intrusions and passenger and vehicle recognition.

Alarm Linkage

Video taking/Image capture (thermal image capture supported)/Email/Linked PTZ/Alarm output

Lens
Lens Type

Athermalized/Prime electric focus/Continuous zoom

Focus Mode

Manual/Automatic

Electric Focusing

Support

Electric Zooming

Support

Digital
Power Supply Range

5-24V DC (Recommended voltage of 12V DC)

Digital Video

LVCMOS/BT.601/BT.1120

Communication Interface

RS-232/UART

Network Type
Power Supply Range

12V DC ±10%

Communication Interface

One RJ45 10M/100M adaptive Ethernet port, one RS-485, one UART

Alarm Interface

1-channel alarm input, 1-channel alarm output

Interface
Analog Video

1-channel PAL system

Environment Adaptability
Operating Temperature

-40℃~+70℃

Humidity

5-95%, non-condensing

Product Certification

RoHS2.0

PTZ Function
Fire Warning

Supports fire point detection.

System Interface
Audio Interface

1-channel audio input, 1-channel audio output

Thermal Imaging
Measurement Range

Not support

Measurement Accuracy

Not support

Others
Storage Temperature

-45℃~+85℃

Application Scenarios

Perimeter Monitoring
Perimeter Monitoring

Forest Fire Prevention
Forest Fire Prevention

Urban High-Altitude Observation
Urban High-Altitude Observation

Security Monitoring
Security Monitoring
