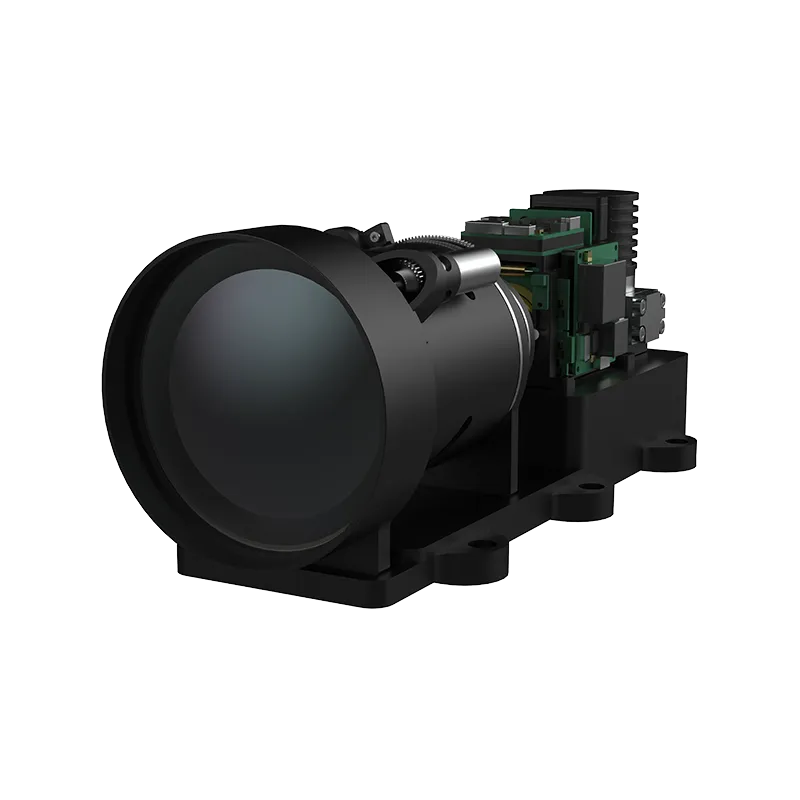

Photon M615S Medium Wave Infrared Module, Cooled Camera Module

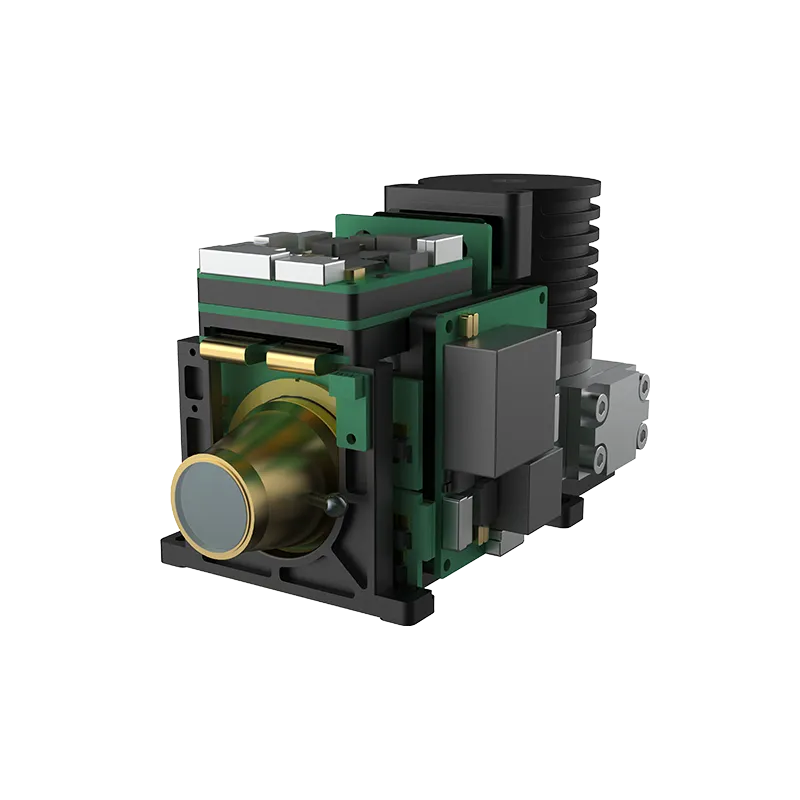

Photon M615S Medium-Wave Cooled Infrared Module

The Photon M615 medium-wave cooled infrared module is provided with the high-performance HgCdTe cooled infrared FPA detector, and carried with the self-developed image processing algorithm.
It reaches the frame rate of up to 100Hz, and has the NETD as low as 15mK.

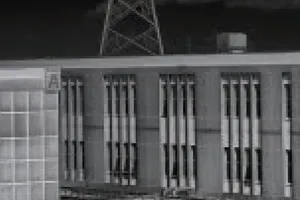

It supports multiple digital video interfaces, is suitable for multiple focus and continuous zoom lenses, and is widely applied in sighting distance enhancement, dynamic loading, and other scenarios.
It provides an SDK, which is simple and easy to use, reducing secondary development costs.

Add to Compare

Inquire Now

Feature

1. Delicate Images with High Sensitivity

The NETD is as low as 15mK, meeting the requirements of long-distance observation of tiny targets.

2. Self-Developed Algorithm for Intelligent Imaging

Equipped with a new self-developed image algorithm, it supports a wide dynamic range and adaptive integral time, providing the best imaging effect for different scenarios.

3. Higher Frame Rate for Timely Capture

The resolution is up to 640×512 and the frame rate is as high as 100Hz, meeting the requirements of large-range dynamic target capture.

Specification

Performance Indicators

Detector Type	HgCdTe cooled infrared detector
Resolution	640×512
Frame Rate	100 Hz/50 Hz/30 Hz
F#	F2.0/F4.0
Pixel Pitch	15μm
Spectral Band	3.7±0.2μm～4.8±0.2μm
NETD	≤15mK@25℃
Detector Defective Pixel Rate	≤0.5%
Cooling Time@25°C	≤7min

Image Adjustment

Brightness/Contrast Adjustment	Manual/Auto
Polarity	Black-hot/White-hot (white-hot by default)
Reticle	Display/Blank/Move
Digital Zoom	1.0~8.0 continuous zoom (step size:0.1)
Image Processing	Non-uniformity correction, digital filter noise reduction, digital detail enhancement
Mirroring	Horizontal/Vertical/Diagonal

Power Supply

Power Supply Range	27~36V DC (with isolation), typical voltage of 28V DC
Power Consumption (Typical, @25°C)	Steady status ≤16W, peak ≤35W

Interface

Analog Video	PAL
Digital Video	Cameralink/SDI
Serial Communication Interface	RS422(default baud rate: 115200)

Physical Characteristics

Dimensions (Without lens)	≤ 870g (with isolation)
Weight (Without lens)	144×75×81mm (±1) (with isolation)

Environment Adaptability

Operating Temperature	-40℃～+60℃
Storage Temperature	-45℃～+65℃
Temperature Shock	-45℃~+65℃（≤5℃/min）
Random Vibration	4.2g
Shock	Final peak sawtooth wave, 40g, 11ms (18 times in three axes and six directions in total)
MTTF	≥8000h
Storage Life	10 years
