RG600F OGI Handheld Camera, Gas Detection Camera

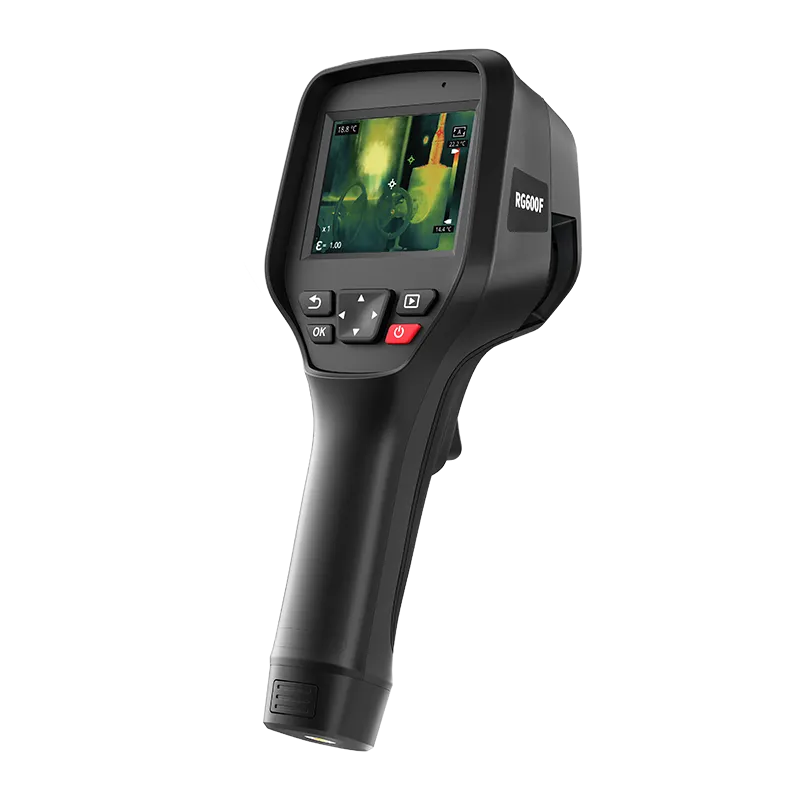

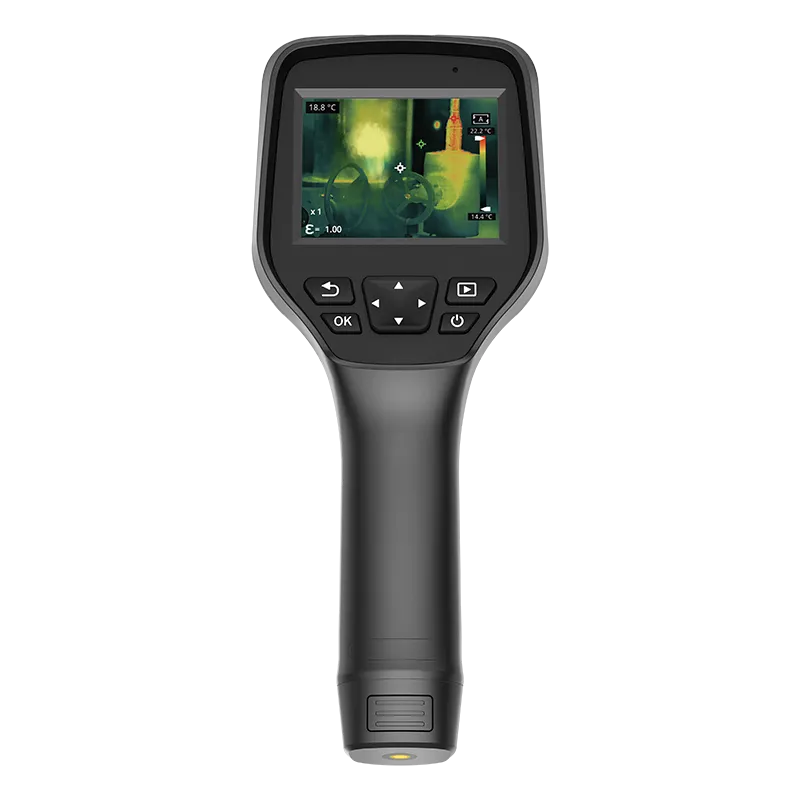

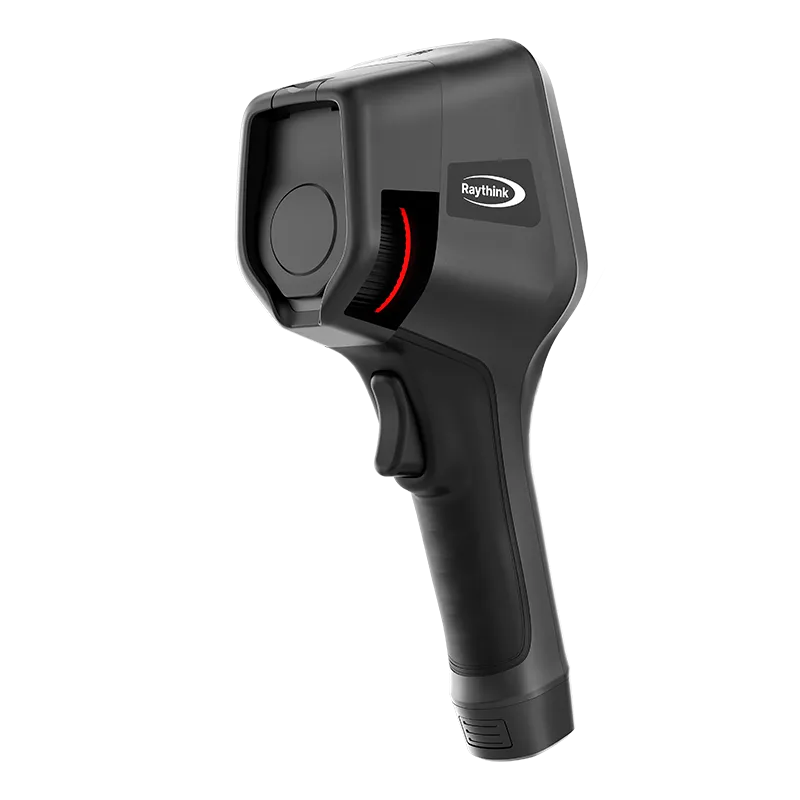

RG600F OGI Handheld Camera

Using an uncooled VOx detector featuring high spatial resolution and high sensitivity, powered by infrared thermal imaging technology, RG600F enables non-contact, visual leak location for dozens of gases such as Sulfur Hexafluoride (SF₆), Ammonia (NH₃), Ethylene (C₂H₄), Propylene (C₃H₆) and other gases.
This series are ideal for gas security, emission management, and equipment maintenance in industries such as oil and gas, petrochemical, environmental protection, emergency response and electric utilities.

Add to Compare

Inquire Now

Feature

Equipped with a 640×512 customized band-pass filter detector to eliminate stray light interference; capable of distinguishing a temperature difference of 0.023°C, capturing gas microleakage.
Spatial resolution as low as 0.63mrad, providing wider working distances or better gas details.

Simultaneous observation of thermal imaging and visible light to easily locate gas leaks
High accuracy of temperature measurement, easy to meet the dual tasks of gas leakage detection and temperature measurement
5-inch touch screen+ complete analysis functions, easy to facilitate routine inspection tasks

Ex ic IIC T4 explosive-proof rated, suitable for security applications in explosive-proof application such as oil and natural gas routine inspections.

Equipped with a 640×512 customized band-pass filter detector to eliminate stray light interference; capable of distinguishing a temperature difference of 0.023°C, capturing gas microleakage.
Spatial resolution as low as 0.63mrad, providing wider working distances or better gas details.

Simultaneous observation of thermal imaging and visible light to easily locate gas leaks
High accuracy of temperature measurement, easy to meet the dual tasks of gas leakage detection and temperature measurement
5-inch touch screen+ complete analysis functions, easy to facilitate routine inspection tasks

Ex ic ⅡC T4 explosive-proof rated, suitable for security applications in explosive-proof application such as oil and natural gas routine inspections.

Specification

Thermal Imaging Parameters

Detector Type	Uncooled infrared detector
Infrared Resolution	640×512
Spectral Band	Central wavelength 10.55μm
Detectable Gases	Sulfur Hexafluoride (SF₆), Ammonia (NH₃), Ethylene (C₂H₄), Propylene (C₃H₆) and other gases
Pixel Size	12μm
Thermal Sensitivity (NETD)	23mK
Spatial Resolution (IFOV)	0.63mrad
Image Frequency	30Hz
Lens Focal Length	19mm
Field of view (FOV)	23°×18°
Focus Mode	Manual
Object Temperature Range	-20°C~+120°C
Temperature Accuracy	±2% or ±2°C

Camera Functions

Temperature Measurement Mode	Center point/Hot and cold spot tracking and temperature display
Customized Measurement on Points, Lines, and Areas	Movable points/lines/areas; up to 10 points, 10 areas, and 10 lines
Measurement Unit	Celsius, Fahrenheit, Kelvin
Emissivity Settings	0.01~1.00, step size 0.01
Ambient Temperature Settings	-10°C~+50°C, step size 1°C
Distance Settings	1~20m, step size 1m
Image Mode	Infrared, visible light, dual-spectrum fusion, PIP
Palettes	10
Temperature Alarm	Available
Alarm Type	Image Alarm
Temperature Width Stretch	Manual/Auto temperature range
Laser Pointer	Available
Visible Light Camera	5 megapixels
Video/Photo Storage	XX-IR.jpg (Infrared image with temperature data) and XX-DC.jpg (visible-light image); videos without data.
Voice Note	Available
Language	English, Japanese, Poland, Russian, Korean, Hungarian, Bap, German, French,Spain, Italy, Turkey, and Traditional Chinese
Display Size	3.5-inch touch screen (480×640)
Image Naming	Auto/manual naming, naming by scanning QR code
Memory Card	Standard 32GB Micro SD card
Battery Type	Rechargeable and detachable lithium-ion battery
Power Supply	USB TypeC
Connecting Method	USB, SD card, Wi-Fi (AP mode or networking mode)
Battery Charging Time	About 3h
Battery Operating Time	About 3h
Power Management	Automatic shutdown: 5 minutes, 10 minutes, 20 minutes, never

Measurement and Analysis

Laser Pointer	Available

System Functions

Temperature Alarm	Available

Others

Analysis Software	PC & App
Tripod Support	Available
Operating Temperature	-10°C~+50°C
Storage Temperature	-20°C~+60°C
Relative Humidity	10%~95%, non-condensing
Drop Protection	2m
Ingress Protection Rating	IP54(IEC 60529)
Shock and Vibration	Shock: 25g (IEC 60068-2-27); vibration: 2.5g (IEC60068-2-6)
Dimensions	258.4×105.1×102.3(mm)
Weight	About 670g
Certificaitons	CE/ROHS, etc.
Packing List	5V 3A power adaptor, USB cable, SD card, battery ×2, Quick Start Guide, battery charger, calibration certificate, package list
