SilentW-UM6 Mini Infrared Panoramic Camera - Raythink

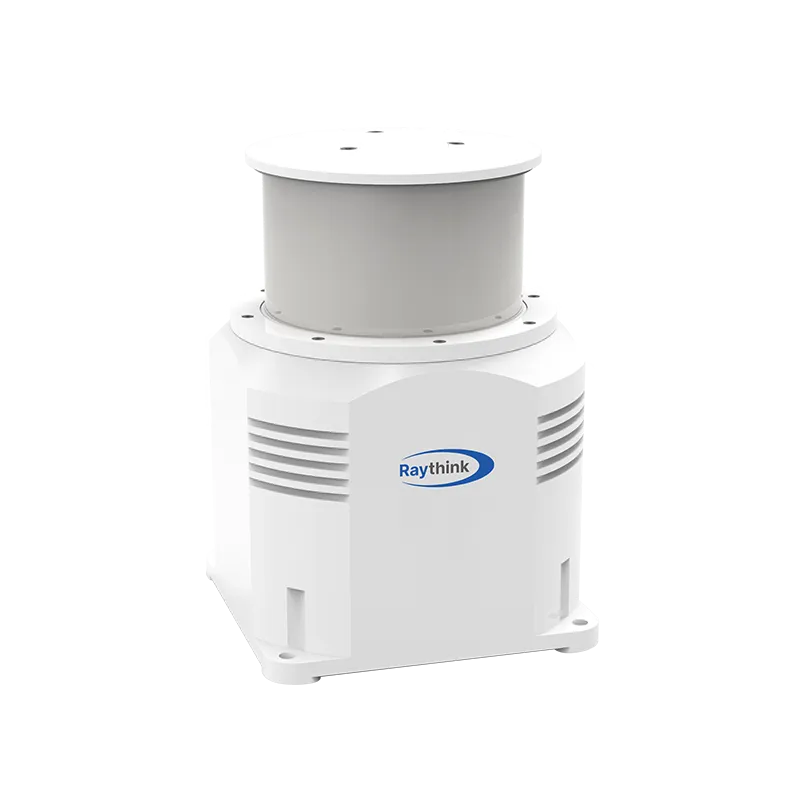

SilentW-UM6 Mini Infrared Panoramic Camera

SilentW-UM6 Series Mini Infrared Panoramic Camera

SilentW-UM is a compact solution for 360° panoramic monitoring.
It’s only 2 kg but equiped the latest 12μm thermal detector.
It is very convenient to carry and to deploy the camera to create a perimeter security solution easily.

Feature

Adopts the latest 12μm uncooled infrared detector or high-performance MWIR cooled detector, and advanced infrared image algorithms to ensure clear imaging at greater.

Only weighs 2.1kg, easy for deployment.

Detects a full circle in approximately 2 seconds and delivers real-time panoramic video images, enabling comprehensive visual monitoring without blind spots.

Capable of simultaneously detecting & tracking up to 128 targets, detection range up to 1.5km.

Deep learning AI algorithm to recognize human, vehicle, ship, and UAV targets.

Easy calibration, link with dual-spectrum PTZ camera to track the target. Using zoom lens to view more details from long

SilentW-U12 Series-1

SilentW-U12 Series-2

SilentW-U12 Series-3

SilentW-U12 Series-4

Specification

Thermal Module

Detector Type	VOx, uncooled FPA detectors
Spectral Range	8~14μm
Resolution	640×512
Pixel Pitch	12μm
Focal Length	19mm/25mm

PTZ

Pan	360° continuous，200°/s or 160°/s
Tilt	-5°~+5°，manually
Scan mode	Linear Scan/Panorama Scan

Smart Function

Fire Detection	Support
VCA	Motion Target Detection/AI Detection
Linkage Action	Linkage of PTZ camera

System Interface

Power	DC 24V
Network	100M/1000M Ethernet port

General

Work Environment	-40℃~+60℃
Protection	IP66
Power Consumption	15w
Dimenstion(mm)	108×112×175
Weight	2.1kg

Application Scenarios

Perimeter Surveillance

Important Area Perimeter

Nature Reserve

Oil and Gas Pipelines
