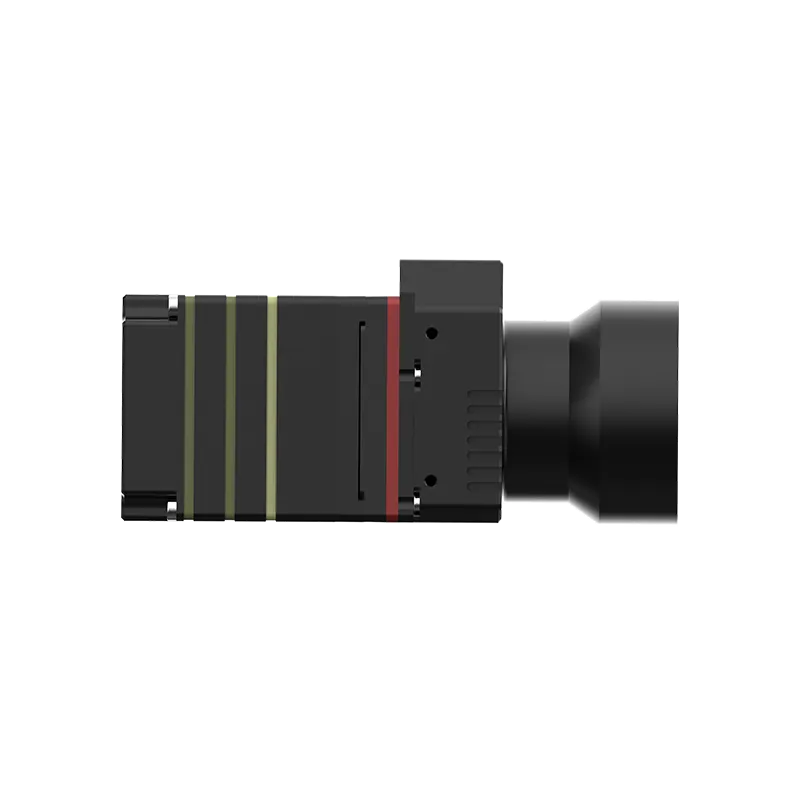

TN430 Fixed-mount Thermal Camera

TN430 is a high-performance and high-precision network type temperature measurement thermal imager that uses a uncooled focal plane detector and offers multiple lens options.
Supports multiple protocols such as Modbus and Onvif, equipped with professional application software and universal SDK development package, with small size and low power consumption, making it easy to integrate industrial automation applications.

Add to Compare

Inquire Now

Feature

TN430 can output high-quality infrared images with a resolution of 384×288, providing clear and delicate infrared thermal images for temperature data analysis and determination.

With a frame rate of up to 50Hz, TN430 can capture temperature changes at a very high speed. It is very suitable for applications requiring real-time monitoring of temperature changes. It enables synchronous temperature data output, easy for secondary analysis based on the site conditions.

With a wide measurement range from -20°C to +650°C, TN430 is suitable for industrial scenarios with various temperature requirements. The device utilizes a temperature compensation algorithm to adjust for environmental factors and ensure measurement accuracy and reliability.

Specification

Thermal Imaging Parameters

Detector	Uncooled VOx detector
Infrared Resolution	384×288
Pixel pitch	12μm
Spectral Band	7.5μm~14μm
Thermal Sensitivity (NETD)	≤40mK

Temperature Measurement Function

Measurement Range	-20℃~+150℃, 0~650℃
Measurement Accuracy	±2°C or ±2% of readings, whichever is greater.
Temperature Measurement Correction	Reflected temperature, ambient temperature, atmospheric transmissivity, object emissivity, distance
Measurement Tool	Settings of measurement rules for a total of 12 points, 12 lines, and 12 areas,support isotherm setting
Temperature Width Stretch	Support temperature width stretch

Image and Video

Frame Rate	50Hz
Palettes	20 color palettes including black-hot, white-hot, iron red, rainbow, etc.
Video Standards	H.264, H.265
Thermal Image Capture	Support thermal image capture and secondary analysis
Mirror Image	Horizontal/Vertical/Diagonal
Digital Zoom	1.0~8.0 continuous zoom (step size: 0.1)

System Interface

Communication interface	RJ45, 10M/100M adaptive Ethernet port; 1-channel RS485 interface, support extended Pelco-D protocol
Audio Interface	1-channel audio input, 1-channel audio output
Alarm Interface	1-channel alarm input, 1-channel alarm output
Video Interface	1-channel analog video
Storage Interface	Support TF card
Network Protocol	IPv4, HTTP, HTTPS, SMTP, FTP, UPnP, DNS, DDNS, NTP, RTCP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP
Interface Protocol	Modbus TCP, ONVIF, GB28181, MQTT

Device Specifications

Operating Temperature	-40°C~+70℃
Power supply mode	9V-15V DC, optional POE power supply
Typical Power Consumption	≤2.4W
Dimensions	45mm×44mm×60mm (without lens)
Weight	About 110g (without lens)
