Name: Turing C256 Thermal Camera Module, LWIR Camera Module - Raythink
SKU: Turing C256

Turing C256 Uncooled Infrared Module

The Turing C256 uncooled infrared module, adopting an advanced 256×192 wafer detector, features compact dimensions, lightweight design, and low power consumption, meeting the SWaP^³ design requirements.

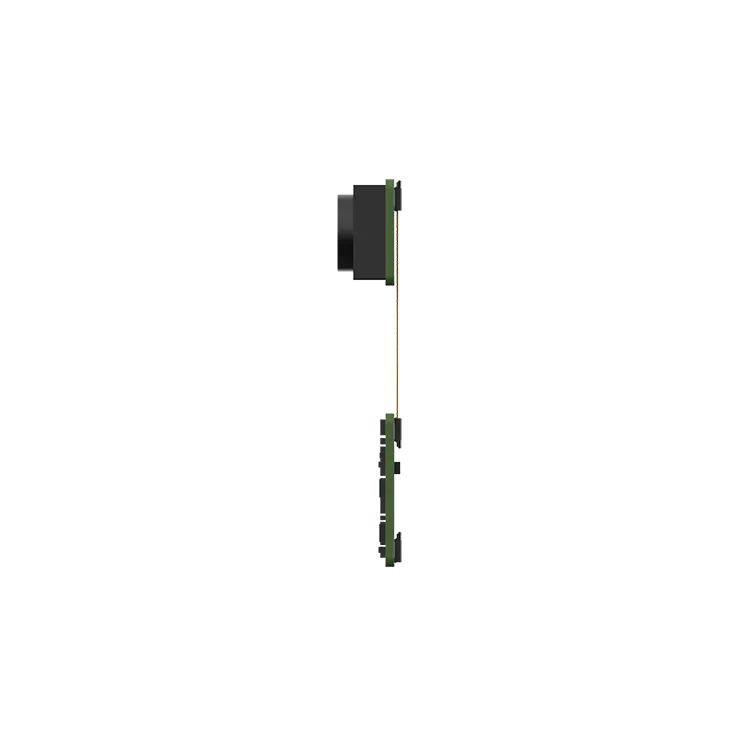

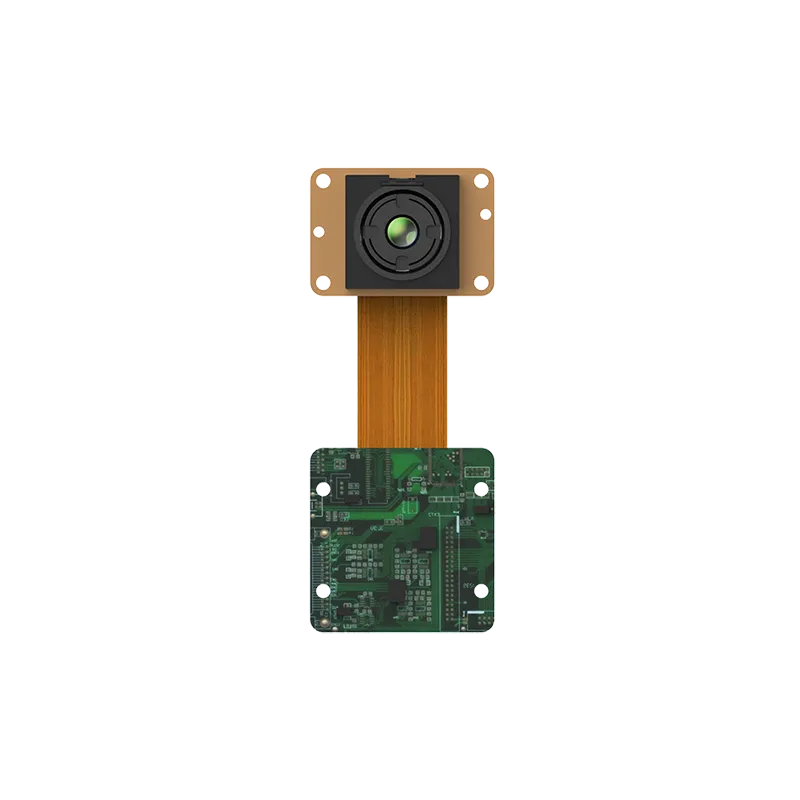

The split assembly makes it more flexible to use.
It comes with multiple auxiliary development tools that support multiple ARM architecture SOC platforms, ensuring ease of use and integration.
It also supports the simultaneous output of images and temperature values with a variety of lightweight infrared lenses and extension components. As the best choice for low-cost solutions, this product series can be used in many scenarios such as industry, power, security protection, and machine vision.

Low-Cost Solution

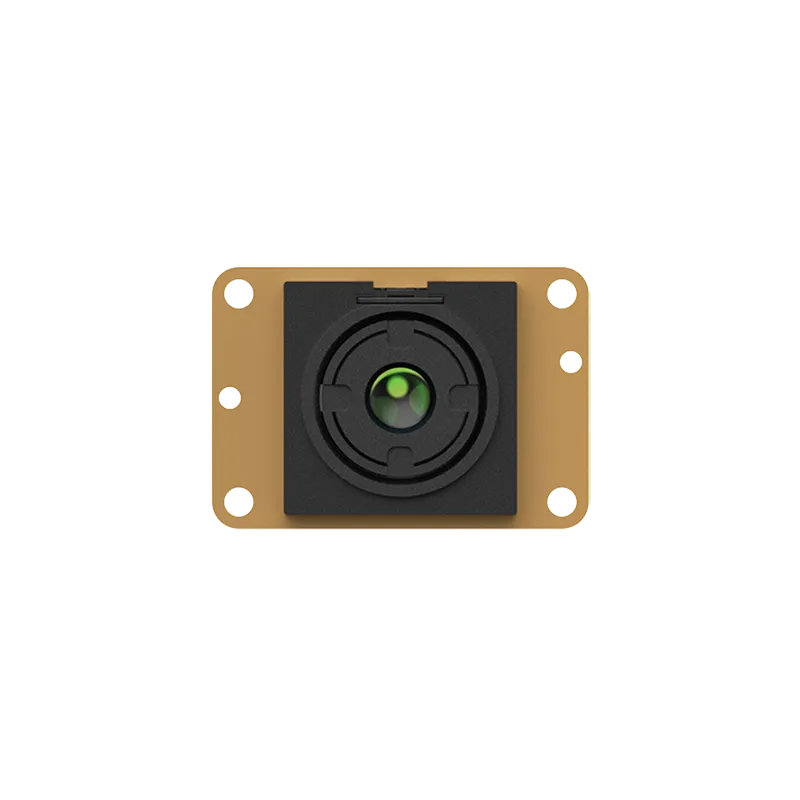

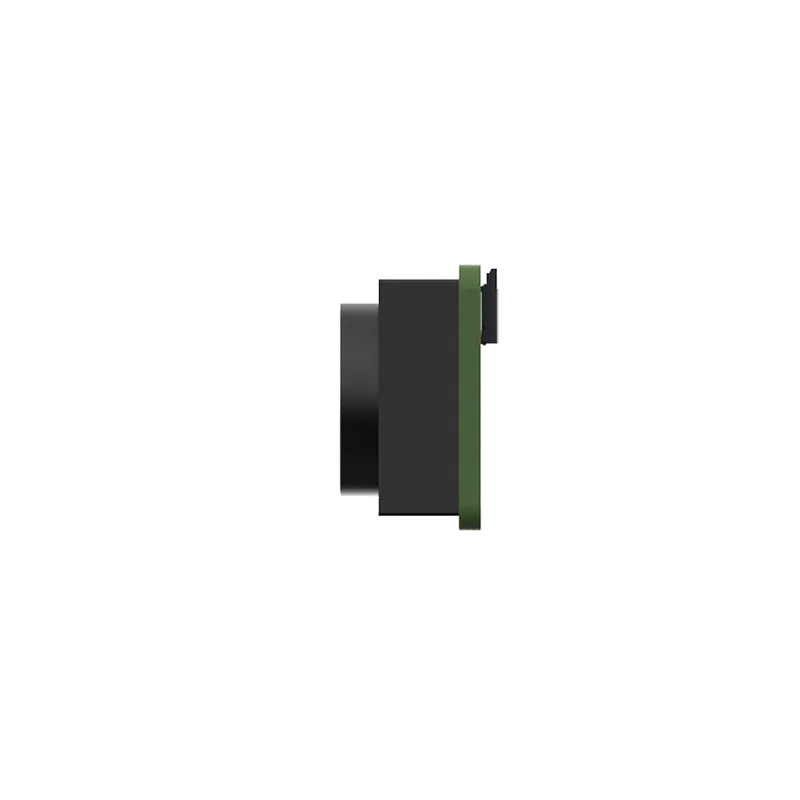

It adopts the 256×192 WLP detector and weighs only 3.5g with a 3.2mm lens.
It supports multiple ARM architecture SOC platforms, capable of directly processing sensor data.

Easy Development

It is compatible with various mainstream embedded SOC platforms and can optimize the image effect of ISP.
It provides multiple SDK development interfaces for rapid secondary development.

Multiple Selections

The FOV varies from 20° to 90° and the extension supports multiple protocols such as DVP, MIPI, and analog video.
The split design is convenient for integration and development, supporting applications in multiple areas such as consumer, intelligence, security, and industrial sectors.

Performance Indicators

Detector Type	Uncooled VOx infrared detector
Resolution	256×192
Detector Frame Rate	25 Hz
Pixel Pitch	12μm
Spectral Band	8~14μm
NETD	≤50mK at 25°C (≤40mK, optional)

Image Adjustment

Brightness/Contrast Adjustment	Manual/Auto
Polarity	Black-hot/White-hot
Palette	Multiple types support
Reticle	Display/Blank/Move
Image Processing	Digital filtering noise reduction, and digital detail enhancement
Mirroring	Horizontal/Vertical/Diagonal

Power Supply

Power Supply Range (typical)	3.8V~5.2V
Typical Power Consumption at 25°C Without Extension	≤0.35W

Interface

Digital Video	CDS2/CDS3/LVCMOS
Serial Communication Interface	UART
Extension Components	Analog Video

Interface/Supporting

Direct Drive Solution	Compatible with SOC platforms such as HIS13516, HIS13519, NT98528, AR9201, AR9341, and CV28M33

Temperature Measurement Performance

Measurement Range	Temperature measurement series: -20℃～+550℃
Measurement Accuracy	For measurement series, ±3°C or ±3% of reading (The greater shall prevail) @Ambient temperature of -20°C~+60°C
