| Performance Indicators |
|---|
| Detector Type | Uncooled VOx infrared detector
|
|---|
| Resolution | 1920×1080
|
|---|
| Detector Frame Rate | 30 Hz
|
|---|
| Pixel Pitch | 8μm
|
|---|
| Spectral Band | 8~14μm
|
|---|
| NETD | ≤30mK@25°C, F#1.0
|
|---|
| Electronic Anti-shake | Support
|
|---|
| Fire Alarm | Support
|
|---|
| High Light Protection | Support
|
|---|
|
| Image Adjustment |
|---|
| Palette | Support (20 types)
|
|---|
| Digital Zoom | 1.0~8.0× continuous zoom (step size: 0.1), supporting zooming in any area
|
|---|
| Image Processing | filtering noise reduction/Digital detail enhancement/Image style switch, Non-uniformity correction/Brightness and contrast adjustment/Temporal filtering noise reduction/Spatial
|
|---|
| Mirroring | Horizontal/Vertical/Diagonal
|
|---|
|
| Network Function |
|---|
| Network Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, IGMP, SMTP, NTP, QoS, and other network protocols.
|
|---|
| Platform Access | ONVIF, GB28181, SDK
|
|---|
| Browser | Chrome, Edge, Firefox, etc. in various languages
|
|---|
|
| Intelligent Functions |
|---|
| Intelligent Alarm | Abnormality detection and linkage alarm for network cable disconnection, IP address conflict, full memory, memory error, illegal access
|
|---|
| Intelligent Detection | Tripwire, regional intrusion, target tracking, and other intelligent video analysis functions
|
|---|
| Alarm Linkage | Video taking/image capture/Email/linked PTZ/alarm output
|
|---|
| Intelligent Video Taking | Support
|
|---|
|
| Lens |
|---|

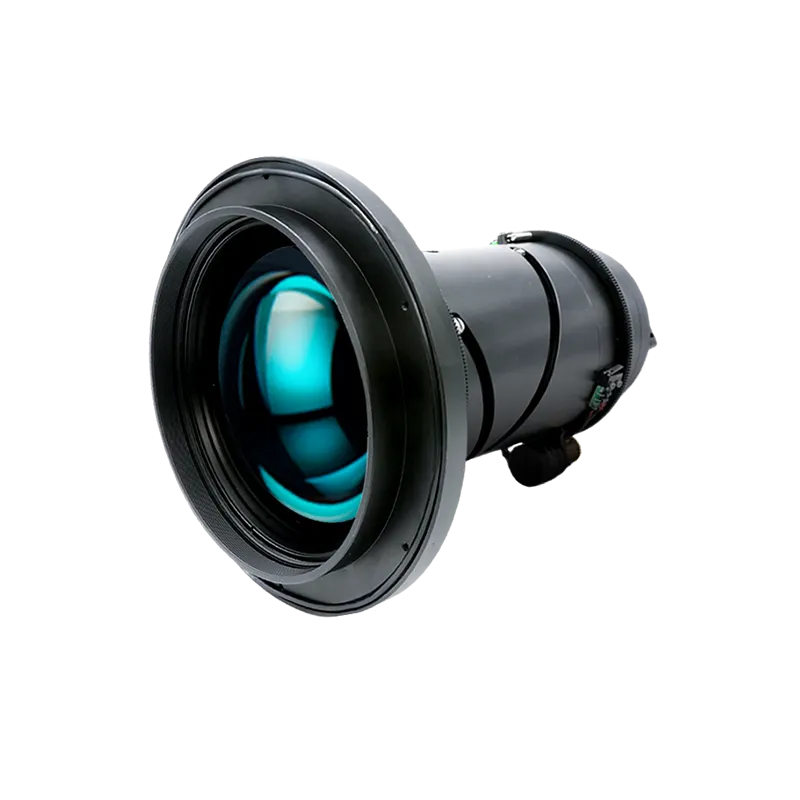

| Lens Type | Athermalized/Motorized fixed-focus /Continuous zoom
|
|---|
| Focus Mode | Manual/Automatic (focus time ≤ 1s near clear points)
|
|---|
| Electric Focusing | Support
|
|---|
| Electric Zooming | Support
|
|---|
|
| Digital |
|---|
| Power Supply Range | 5-24V DC (12V DC recommended)
|
|---|
| Typical Power Consumption at 25°C | ≤3.8W
|
|---|
| Digital Video | LVCMOS/BT.1120/MIPI,withextensionsforSDI,USB,CameraLink,HDMI
|
|---|
| Communication Interface | RS-232/RS-485
|
|---|
| Weight | 165g±5g (without lens)
|
|---|
| Dimensions | 55mm×55mm
|
|---|
|
| Network Type |
|---|
| Power Supply Range | 12V DC ±10%
|
|---|
| Typical Power Consumption at 25°C | ≤6.5W
|
|---|
| Communication Interface | One 10M/100M/1000M adaptive Ethernet port, one RS-485
|
|---|
| Alarm Interface | 1-channel alarm input, 1-channel alarm output
|
|---|
| Audio Interface | 1-channel audio input, 1-channel audio output
|
|---|
| Weight | 240±10g (without lens)
|
|---|
| Dimensions | 55mm×55mm×53mm
|
|---|
|
| Environment Adaptability |
|---|
| Operating Temperature | -40°C～+70°C
|
|---|
| Storage Temperature | -45℃～+85℃
|
|---|
| Humidity | 5-95%, non-condensing
|
|---|
| Product Certification | RoSH2.0
|
|---|
|
