| Thermal Imaging |
|---|
| Detector Type | Uncooled infrared detector
|
|---|
| Infrared Resolution | 1280×1024
|
|---|
| Pixel Size | 12μm
|
|---|
| Super Resolution | 2560×2048
|
|---|
| Spectral Band | 7.5-14μm
|
|---|
| NETD | ＜25mK (25°C,F1.0)
|
|---|
| Frame Rate | 30 Hz
|
|---|
| Lens Focal Length | Standard lens: 34.9mm; wide-angle lens: 19.8mm; telephoto lens: 72.9mm; macro lens (0.2×): 17.8mm; super macro lens (0.4×): 15.2mm
|
|---|
| FOV | Standard lens: 25°×20°; telephoto lens: 12°×9.6°; wide-angle lens: 45°×36°
|
|---|
| IFOV | Standard lens: 0.34mrad; telephoto lens: 0.17mrad; wide-angle lens: 0.6mrad; macro lens: One pixel corresponds to 50μm; super macro lens: One pixel corresponds to 25μm.
|
|---|
| Focusing Mode | Manual focus,electri micro focus, one-button center focus, automatic center focus,single-touch automatic focus, laser-assisted focus
|
|---|
| Minimum Imaging Distance | Standard lens: 0.5m; telephoto lens: 2.3m; wide-angle lens: 0.2m; macro lens: 46mm; super macro lens: 13mm;
|
|---|
| Measurement Range | Standard: -20°C~+150°C (low temperature range), 150°C~800°C (medium temperature range), 400°C~2000°C, other ranges (high temperature range)
|
|---|
|
| Imaging Display |
|---|

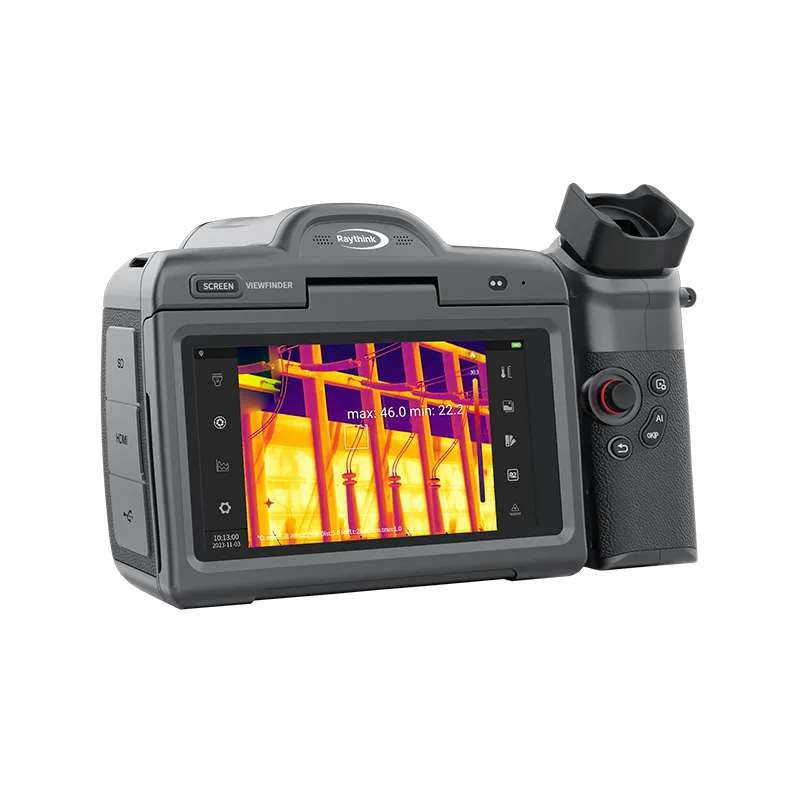

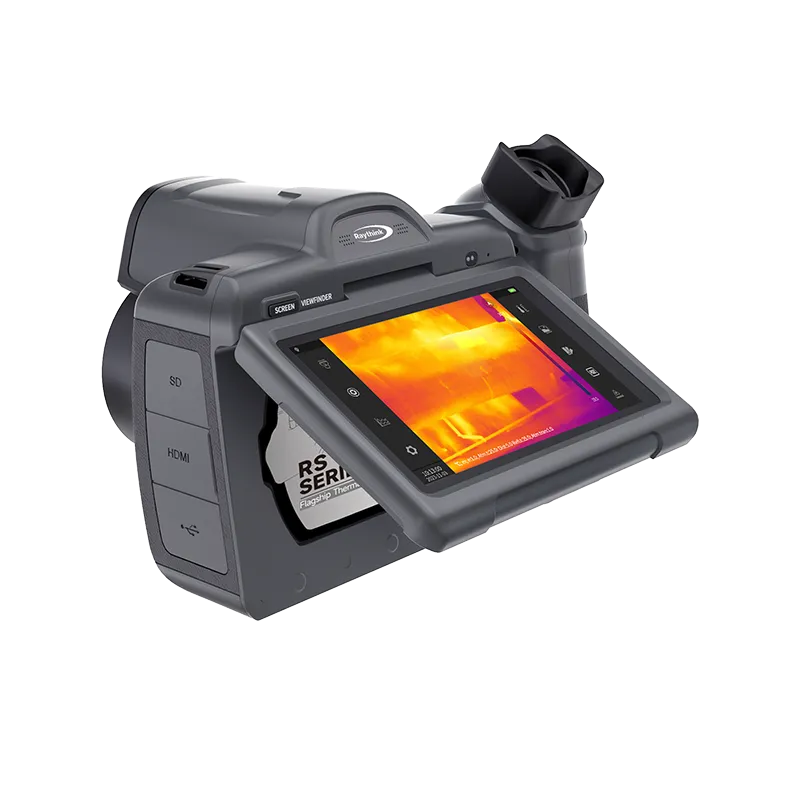

| Display | 5.5-inch LCD touch screen, resolution 1920×1080
|
|---|
| Visible Light Camera | 13 megapixels
|
|---|
| Digital Zoom | 1–15 times, continuously adjustable roller
|
|---|
| Palettes | 19 options
|
|---|
| Image Mode | Infrared, visible light, PIP, dual-spectrum fusion
|
|---|
| Temperature Width Stretch | Support
|
|---|
|
| Image Storage |
|---|
| Storage Medium | Standard 64GB MicroSD. Support SD, SDHC, and SDXC, up to 2TB.
|
|---|
| Text Notes | Support
|
|---|
| Voice Annotation | Support
|
|---|
|
| Measurement and Analysis |
|---|
| Laser Rangefinding | Support
|
|---|
| Area Measurement | Support
|
|---|
| Position | Support
|
|---|
| Temperature Difference Analysis | Support
|
|---|
| Trend Analysis | Supports temperature trend recording and analysis.
|
|---|
| Image Freezing | Support
|
|---|
| Analysis Report | PDF format. Support editing and template importing on the PC client.
|
|---|
| Supporting Software | PC (Infrared Analysis Software) & Mobile Device (iOS/Android APP)
|
|---|
|
| Video Functions |
|---|
| Radiation Infrared Video Recording | Support compressed full radiation video recording (.irv), up to 15Hz video recording
|
|---|
| Non-radiation Infrared or Visible Light Video Recording | Standard MP4 video recording
|
|---|
| Radiation Infrared Video Stream Transmission | Analysis at about 25Hz on PC
|
|---|
| Non-radiation Infrared Video Stream Transmission | RTSP H.264
|
|---|
| Video Resolution | 1920×1080
|
|---|
|
| System Functions |
|---|
| Intelligent Image Stabilization | Support
|
|---|
| Intelligent Panoramic Stitching | Support
|
|---|
| Intelligent Routine Inspection | Support. General task package import and editing, standard and automatic naming of images
|
|---|
| Routine Inspection Record Self-inspection | Support
|
|---|
| Dual-Spectrum Video Recording | Simultaneous infrared video and visible light video recording, in MP4 format.
|
|---|
| Communication Protocol | Wi-Fi, Bluetooth, USB
|
|---|
| Voice Control | Voice assistant, quick command recognition
|
|---|
| Flashlight | Support
|
|---|
|
| Others |
|---|
| Microphone/Speaker | Support
|
|---|
| Battery | 9000mAh lithium-ion battery, field-replaceable, fast charging
|
|---|
| Charging Mode | USB Type-C or desktop charger
|
|---|
| Battery Life | Continuous operating time ≥ 3 hours (depending on the actual environment and service conditions)
|
|---|
| Interface | USB3.0 Type-C, SD card, SIM card, Mini HDMI
|
|---|
| Tripod Socket | UNC 1/4-20 interface for tripod
|
|---|
| Operating Temperature | '-15°C~+50°C
|
|---|
| Operating Humidity | 10%~95% (non-condensing)
|
|---|
| Storage Temperature | -40°C~+70°C
|
|---|
| Ingress Protection Rating | IP54
|
|---|
| Shock and Vibration | Shock: 25g (IEC 60068-2-27); vibration: 2.5g (IEC60068-2-6)
|
|---|
| Weight and Dimensions | <1.7kg (with battery), 140×210×115mm
|
|---|
| Authentication | CE/RoHS/CMA, etc.
|
|---|
|
